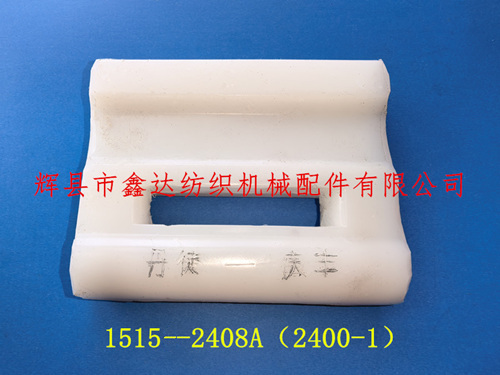

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515-2400-1(2408A)Multi Loom Plastic Pickers, 1515 weaving machine 2408A type picker(white plastic skin knot), multi loom white picker, plastic skin knot, 2408 nylon picker (white code), and single hole white shuttle knot, which are key shuttle components of multi shuttle weaving machines and are commonly used vulnerable parts of textile equipment. The parameter dimensions of 2408A are: total length of 110mm, width of 91.5mm, and thickness of 27.5mm at the outer ring position of the shaft hole.

In the middle is a sliding groove for fixing the shuttle board and 2409A leather knot cushion block, with a length of 62mm, an inner width of 13mm, and a thickness of 25mm at the impact shuttle tip position.

2408A is a single hole type skin structure, with an inner diameter of 12.5mm for the guide rod shaft hole. It is embedded with two 2416 protective sleeves, and the 2408 white skin structure is combined with the 2416 lining to form the 2400-1 plastic skin structure component.

The distance between the center of the guide rod hole of the 2408 picker and the shuttle feeding point is 67mm. The packaging of 2400-1 pickers is 10 per bundle (see the figure below). This loom picker 2408 is not divided into left and right hands, and the weight of a single leather knot is approximately 0.16 kilograms.

If you need to purchase 1515 pickers, multi shuttle white leather knots, plastic Pickers, textile machine shuttle knots and other products, please contact Mr. Yang from our company for consultation. The minimum order quantity for this leather knot is 10 pcs, and the default delivery method is express delivery.
