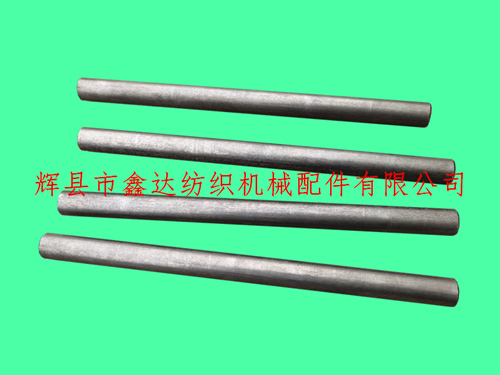

Huixian Xinda Textile Machinery Parts Co., Ltd. provides S12H Treadle Lever Rodt 44" twill Spare Parts, 1511 rod for treadle lever is a 44 diagonal accessory used for the 44 inch weaving machine diagonal device, belonging to shuttle weaving machine accessories and old weaving machine accessories. Its total length is 256mm, shaft diameter is 20mm, and material is A3 cold drawn material. When installing the pedal lever bolt S12H, it is required to be horizontal with a permissible difference of 0.2/150 millimeters. It is connected to the S11 twill bracket for treadle lever for use.

1511-S12H can be borrowed from 1515-6107 (connected to 6105/6106 treadle lever bracket), and the actual length of S12H in the above picture is 30 centimeters.

The S12 pedal rod bolt (shaft) is a regular straight shaft, and the pedal rod shafts used in devices such as 1/2, 2/2, 3/1, 4/1, and corduroy are the same.

The 1511 type plain double tread device uses a tread rod bolt that is different from this. Their accessory part numbers start with S, and the tread rod bolt is S508 (with a shaft outer diameter of 20mm and a total length of 280mm).

If you need to purchase 1511 tread rod bolts, S12 twill accessories, Twill weave parts,Textile Parts,1511-44 accessories, Treadle Lever Rod, and other old shuttle loom accessories, please contact Mr. Yang from our company for consultation.
