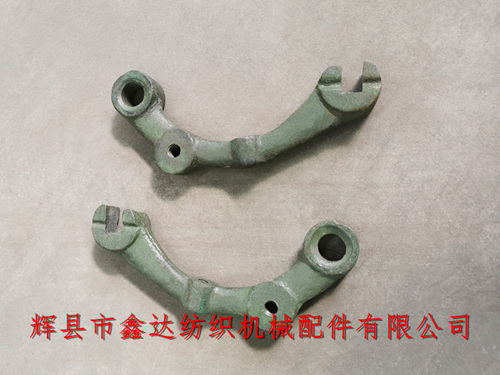

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511-B10C Warp Beam Bracket Cramp, textile accessories for 1511-B10C warp and weft knitting old fabric machines. The diameter of the circular hole at the tail of the B10 warp and weft is 17mm, which is connected to the warp and Yarn Beam Bracket of 1511-B1, B2, 1515-3432B, 3433B, GA615-3432H, 3433H and other models of old fabric machines(shuttle loom parts). The screw hole for fixing the B67/B68 brake pressure plate is M10, and the bolt hole for adjusting the compression depth of the pressure plate is M8. The lower notch position is fixed with a semi-circular head square neck bolt (carriage wire).

The B10C warp support foot climbing is a vulnerable accessory, mainly due to workers being damaged when installing or disassembling the loom warp, or when the warp tension is too high and the weaving shaft is damaged. It is used in a quantity of 2 per weaving machine, with 1 on each side of the lower back of the machine.

Its material is gray pig iron HT15-33, and in some cases, there may be products made of ductile iron (abbreviated as ductile iron) material. This accessory can be used on shuttle looms of models 1511, 1515, G611, GA615, etc.

The packaging of 1511-B10C is: 10 pieces per string, with a wooden box packaging quantity of 1000 pieces per box, and a single weight of 0.44KG, which is 4.4 kilograms per string.

If you need to purchase weaving machine accessories such as B10, Cramp for Yarn Beam, Loom Cramp,Warp Beam,Bracket,Shuttle Loom Parts,Bracket Cramp,weaving machine climbing, shuttle loom support feet, shuttle weaving machine old fabric machine accessories, warp support feet, etc., please contact our company for consultation. Our company guarantees product quality, and the above pictures are all taken from real objects (there may be color differences under different light intensities).
