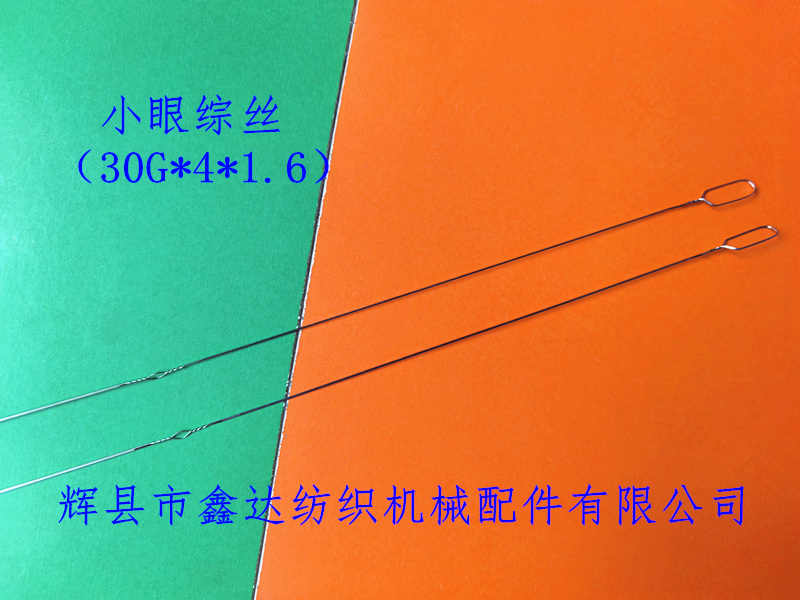

Huixian Xinda Textile Machinery Parts Co., Ltd. provides a textile equipment called "30G wire harness" consisting of 330-30G small eye steel wire heald, 4*1.6 brown wire, 30G (imperial)=0.3mm (metric), which is made by soldering two steel wires with a diameter of 0.3mm side by side. The inner dimensions of the middle hole (Mail-eye) are 4mm long and 1.6mm wide, belonging to the small eye harness. The total length of this 330 harness is 331mm (redundancy 0.4mm).

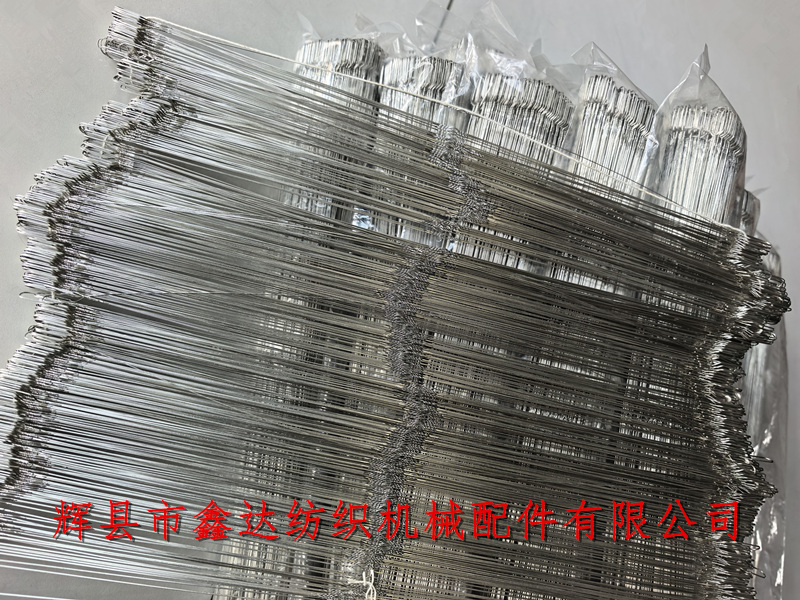

The inner dimensions of the two ends of the wire harness are: inner length of 15mm, inner width of 5mm, belonging to A-IV (13*5) harness eyes. The packaging of 30G small gauge harness wires is 500 pieces/pack, and the weight of each pack is approximately 0.22 kilograms.

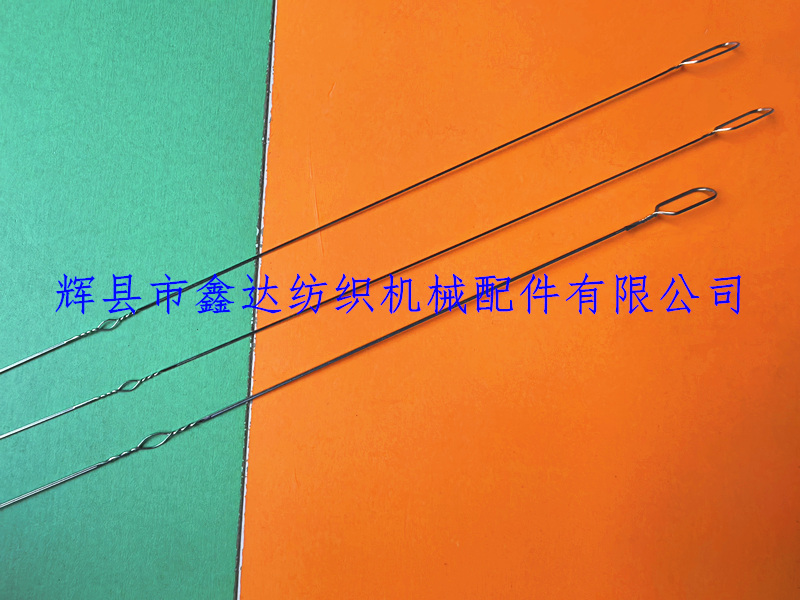

The comparison between it and the regular A6 eye is shown in the above figure. The commonly used specifications of A6 are shown below. The two wires on top are brown wires with small eyes (4*1.6), and the diameter of the soldered steel wire is also different. The wire below is 0.4mm (single diameter), and the wire above is 0.3mm.

Small eyed wire harness is mainly used for weaving high-density fabrics. It can be arranged in an increased number on the harness frame of the loom, with low friction resistance. Due to the increase in prices of soldering and other raw materials this year, the price of soldering wire harness has increased significantly.

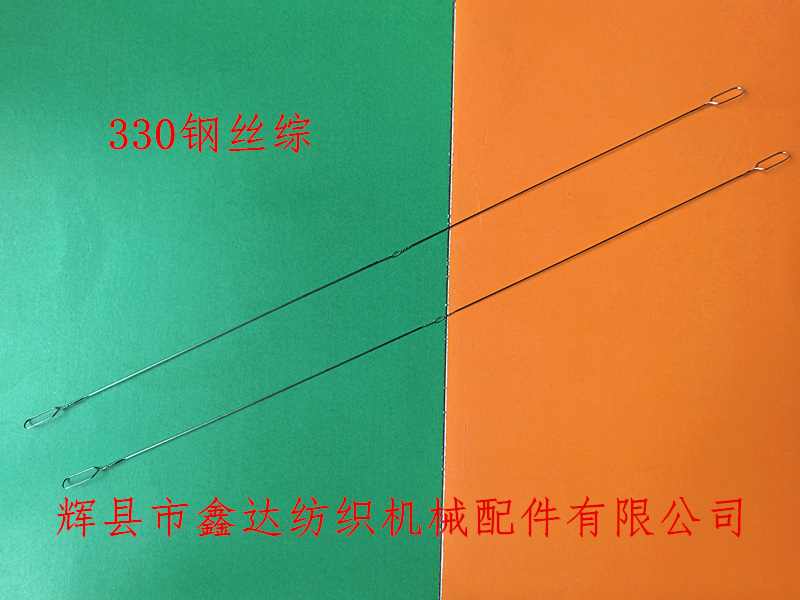

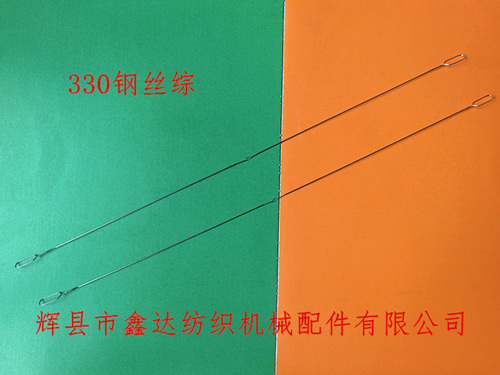

The common specifications for synthetic silk steel wire synthetic silk brown silk include: 260mm (10 ¼ inch), 280mm (11 inch), 305mm (12 inch), 330mm (13 inch), 380mm (15 inch), 405mm (16 inch), etc. If you need to purchase textile equipment products such as 280 nylon wire heald, 330 small eye steel wire heald, 305 steel wire heddle, 380 wire heald, etc., please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
