Huixian Xinda Textile Machinery Parts Co., Ltd. provides Textile Accessory K2 Lathe Sword Loom Part, weaving machine beating mechanism shuttle changing side reed seat foot K2 left and right hand frame legs. The total length of K2 reed seat foot is 86.6 centimeters, made of gray pig iron HT15-33, with narrow protruding ears on the side. It is installed on the shuttle changing side of the weaving machine according to the left and right hands of the machine, and the quantity used for each weaving machine is 1 pcs.

According to the diagram from left to right, it is sequentially connected to the reed cap, reed bed (reed frame wood, dragon), reed clamp shaft support foot, and rocker shaft hanging foot of the loom. The reed cap, reed bed, and reed clamp shaft support foot are divided into left and right hands and need to be installed accordingly.

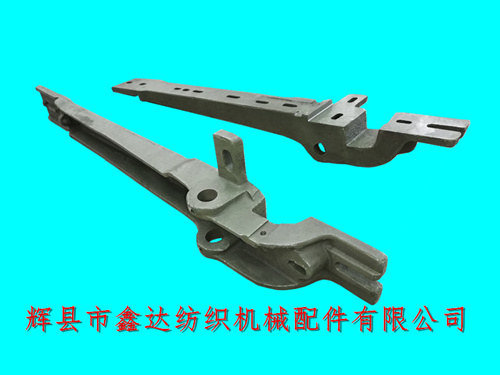

The above diagram is a schematic of 1511-K2, with one on the left hand (bottom of the diagram) and one on the right hand (top of the diagram). The two circular holes on the back are used to hold hands with fixed holding bolts and curved shafts. 1511 old fabric machine accessories, abbreviated as 1511 accessories, cover more than 500 types of products.

There are screw holes under the reinforcing ribs on the back to adjust the height of the F22 pin of the rocker shaft reed frame. In practical application scenarios, the 1511 loom will have modified elongated 56 inch or 63 inch door widths, and they use the same reed seat feet as the 1511 loom.

If you need to learn more about the shuttle side reed seat foot (Lathe Sword) K2 or loom frame leg replacement of the weaving machine beating mechanism, or purchase this model of loom spare parts, you can contact Mr. Yang from our company for consultation. We sincerely welcome your visit.
