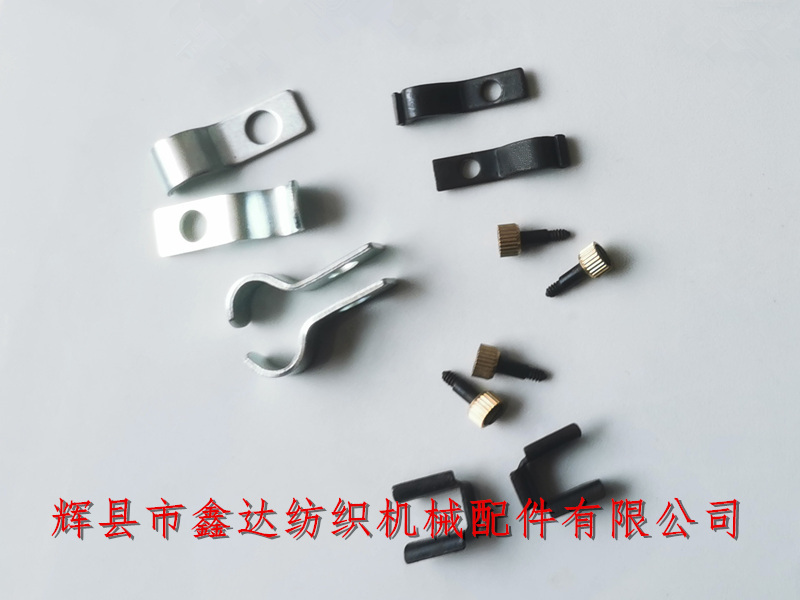

Huixian Xinda Textile Machinery Parts Co., Ltd. provides loom tools, wooden shuttle accessories, textile hardware stamping parts, wooden shuttle size pliers, flexible fixing screws and nuts, multi specification counter bolt (square head), shuttle bottom spring (referred to as shuttle spring), towel shuttle card holder, steel wire pliers and other products. They belong to textile hardware accessories and are used in conjunction with various models and specifications of wooden shuttles. They are weaving tool shuttle accessories. The dimensions of the wooden shuttle card holder (without tail) in the lower left corner of the figure are: total length of 17mm, width of 12.5mm (excluding the bottom edge), total width of 18.4mm, total height of 8mm, width of the inner groove of 9.7mm, and thickness of the main material of the card holder of 1.3mm.

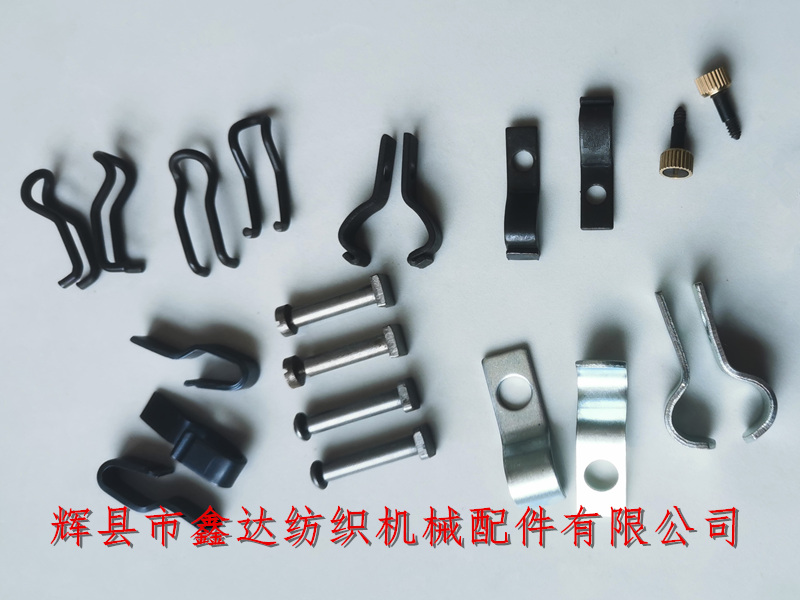

The support head light rod bolt is used for silk weaving machine wooden shuttle or nylon shuttle. The silver white pliers in the picture have a total length of 38.3mm, a width of 12mm, a thickness of 1.8mm for the main galvanized plate, an inner diameter of 8mm for the rear circular hole, and a depth of 8mm for the arc-shaped semicircle, Shuttle Loom Tools- Wooden Shuttles Stamping Part.

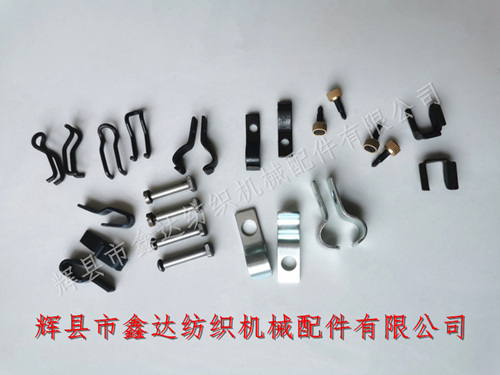

The size parameters of the wooden shuttle accessory steel wire clamp in the upper left corner of the above picture are: total length of 32mm, width of 11.3mm, diameter of the black steel wire of 2.4mm, inner width of the clamp at the right angle position of 5.5mm, height of bending extension of 8mm (including steel wire), and depth of the arc-shaped groove of 6mm.

There are two specifications for the square head locking screw of the hardware accessory shown in the picture: 1. The total length of the coarse type is 24.5mm (excluding screws), the length, width, and height of the square head are 8mm * 8mm * 2.4mm, the diameter of the main body light rod is 5mm, and M3 round table screws are used; 2. The total length of the thin type is 27.3mm (excluding screws), the length, width, and height of the square head are 8mm * 8mm * 2.3mm, the diameter of the middle rod is 5mm, and it is matched with a semi-circular M3 screw. If you need to purchase wooden shuttle accessories such as pliers, tailless clamps, tailless clamps, shuttle screws, shuttle springs, weaving tools, textile hardware, shuttle accessories, or learn more about the parameters and dimensions of wooden shuttle accessories for weaving tools, textile hardware stamping parts, you can contact Mr. Yang from our company for consultation.
