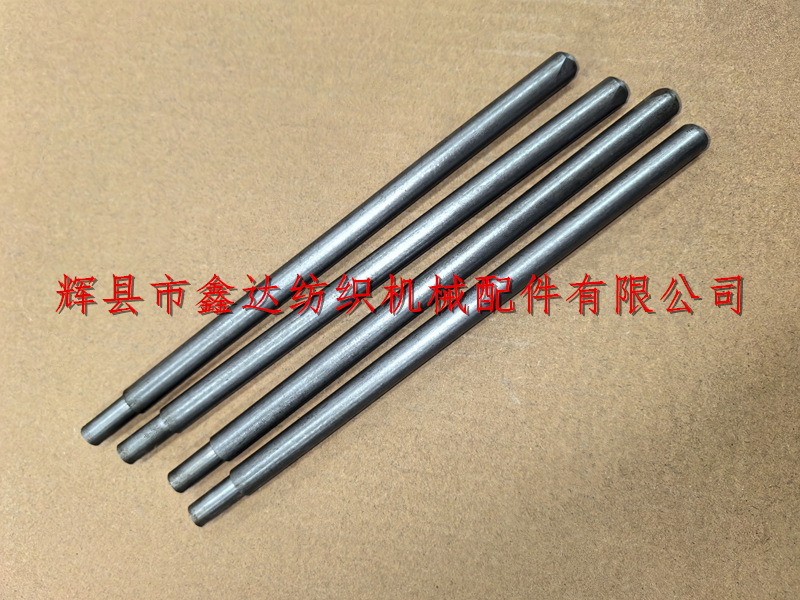

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511/1515 GA615-J30 weft fork spindle rod shuttle change induction accessories, spindle rods, weft forks, shuttle change accessories, weaving machine induction devices, and weaving machine accessories. J30 is a component of the weaving machine shuttle change induction device, used to assist in automatic shuttle change of the weaving machine. It can detect empty weft and trigger parking, suitable for various models of shuttle weaving machine equipment.

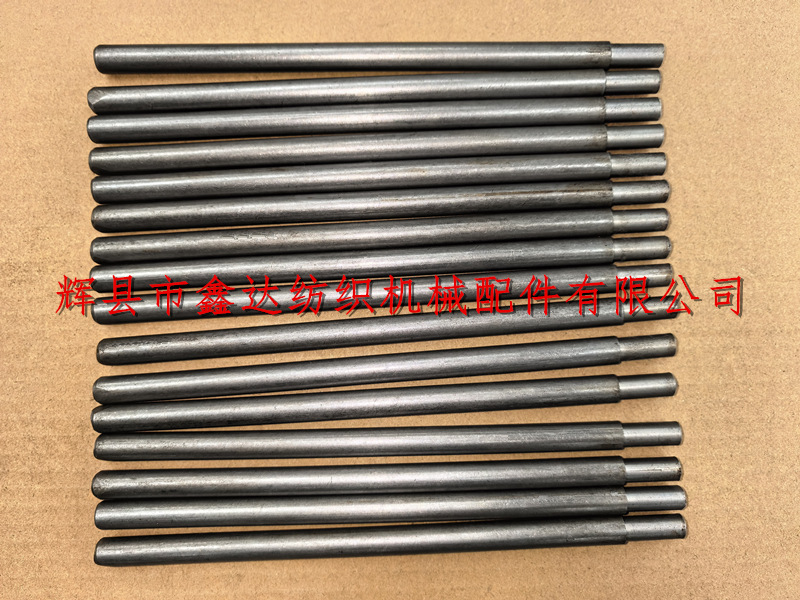

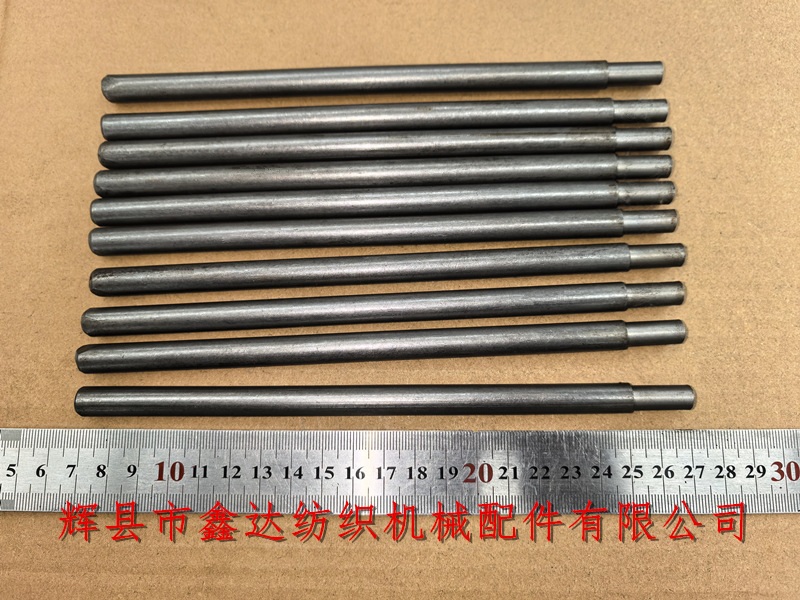

The total length of the J30 weft fork spindle is 198 millimeters, and the length of the front shaft head with a diameter of 8mm is 2 centimeters, which is connected to the J18 weft fork support foot; The outer diameter of the rear axle body is 10 millimeters, which is used to connect with the J19 connection pin.

The middle of the J30 shaft body is inserted into the shaft hole of the spindle support foot J7, with a clearance of no more than 0.13 millimeters. This device is generally calibrated based on the position of the weft fork J32, which is aligned with the middle of the gantry J00-2 on both sides, with the lower part 3-4 millimeters away from the bottom edge of the gantry.

The weight of a single J30 is approximately 113 grams. If you need to purchase J30 spindle, J32 weft fork, automatic shuttle changing accessories, 1511 induction device, 1515 weaving machine accessories and other products, please contact Mr. Yang from our company for negotiation.
