Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515-6105/6106 treadle heald rod hanger feet for twill looms,1515-6105/6106 Loom Treadle Lever Bracket, with the hanger feet 6105 and 6106 constituting the left and right hands. The bottom surface of the hanger foot measures 78mm in length, 50mm in width, and 70mm in total height. The treadle heald rod pin has an inner diameter of 20mm in the shaft hole and an outer diameter of 38mm. The twill treadle heald rod hanger feet are suitable for 1/2 twill, 2/2 twill, 3/1 twill, corduroy opening devices, etc. of 1515 and GA615 looms.

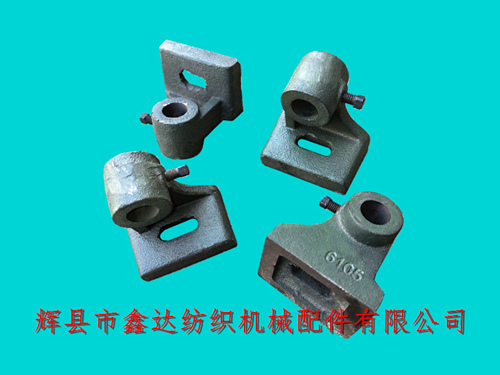

The image above depicts the GA615/1515-6105 tread lever hanger. The square head screw next to the shaft hole is M6, which is used to secure the 1515-6107 tread lever pin and is attached to the top of the loom's rear crossbeam 4308. Two carriage screw holes are located on the outside of the tread lever.

The above picture shows the 6106 tread lever hanger(supporting bracket), Treadle Lever Bracket, Loom Bracket, Twill Loom Parts, which is made of gray cast iron HT15-32. For 56-inch (1350mm width) looms, one 6105 and one 6106 are used per machine; for 63-inch (1500mm width) and 75-inch (1800mm width) looms, two of each are used per machine.

When installing the twill loom foot-6105/6106 supporting bracket, the horizontal difference of the heald rod pin should be calibrated to meet the requirement of 0.2/150mm; Packaging: 10 pieces/string, minimum order quantity: 1 piece, delivery method: logistics or express delivery, default is Deppon Express, freight collect.

If any twill weaving factories, cotton weaving enterprises, or textile trade groups need to purchase tread heald hanger feet, 1511 twill loom accessories, 1515 loom accessories, loom supporting bracket, GA615 loom hanger feet, and other shuttle loom parts and components, please contact Mr. Yang from our company for consultation. We welcome cooperation!
