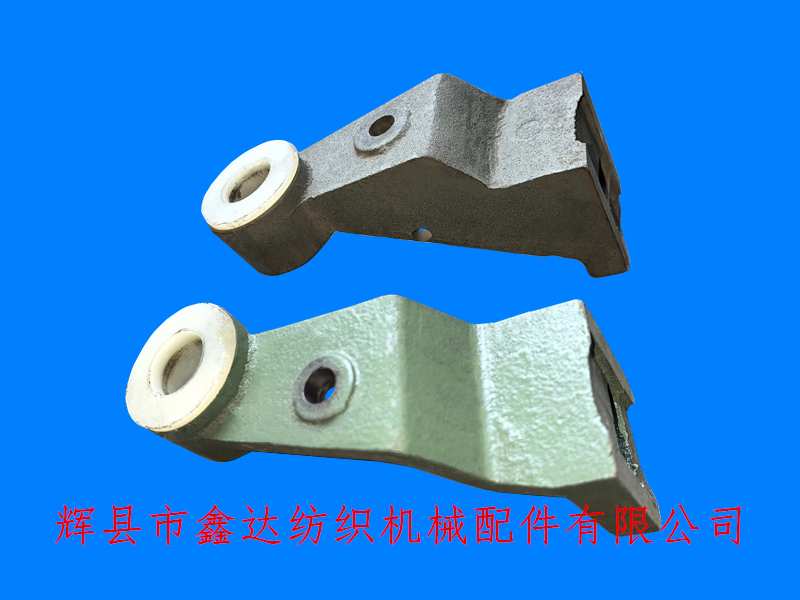

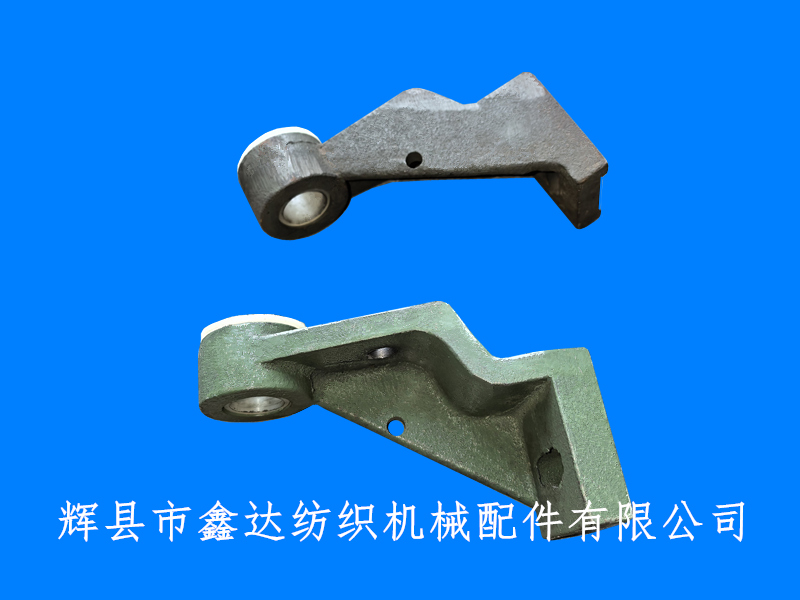

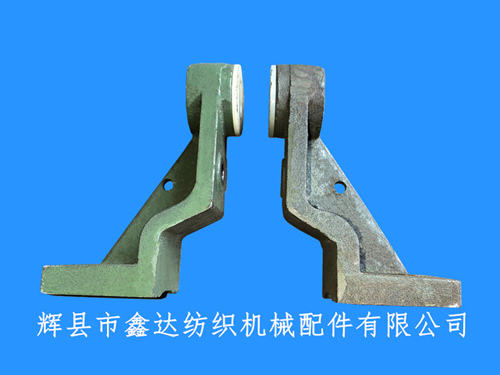

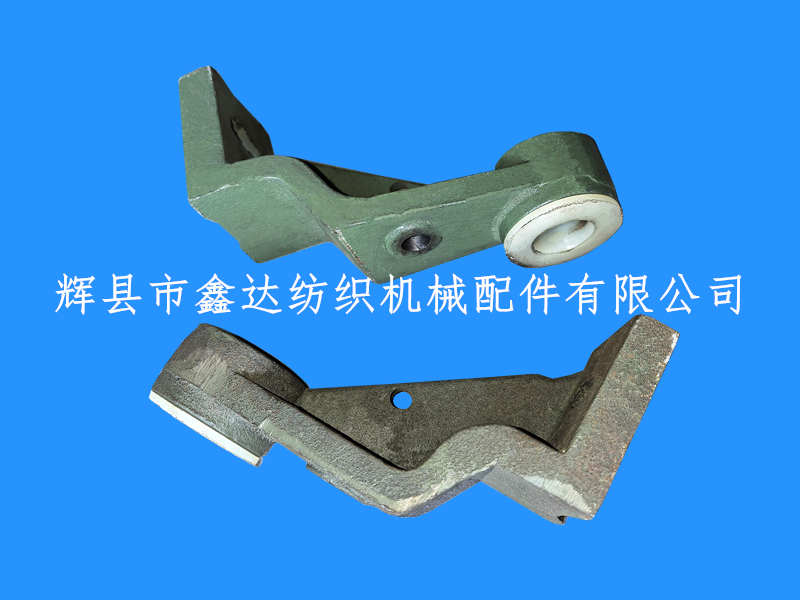

Huixian Xinda Textile Machinery Parts Co., Ltd. provides SJ-44 Vertical Shaft Upper Bracket For Let-off,GA615 shuttle loom parts - SJ-44 R/L vertical shaft support foot wide weaving machine warp delivery accessories, made of gray pig iron HT15-33, which is an external warp delivery accessory for GA615/1515 wide weaving machines. Each weaving machine uses one of these support feet; The total length of SJ44 is 165 millimeters, the length of the base is 70 millimeters, the width is 58 millimeters, and the thickness is 17 millimeters;

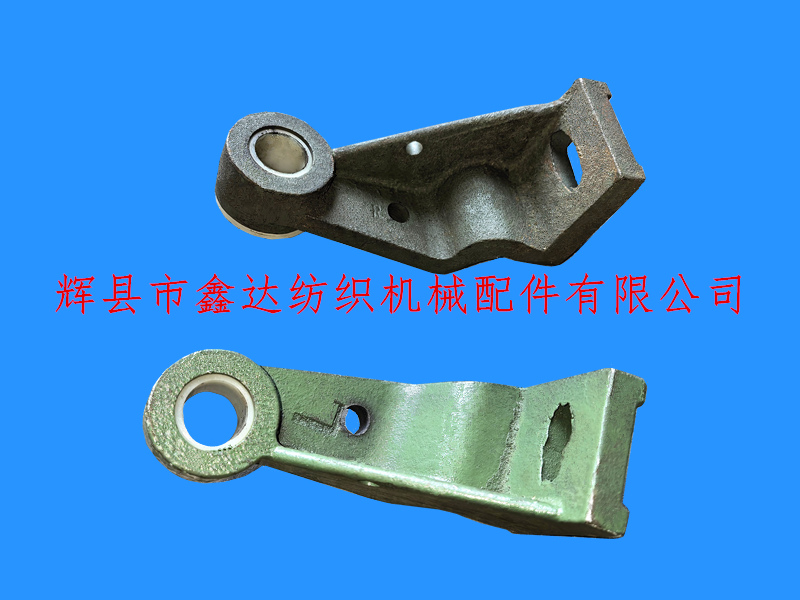

The icon labeled R represents a right-hand vehicle, while the one labeled L represents a left-hand vehicle. The white nylon sleeve is the SJ-12 worm shaft sleeve, and its dimensions are: the outer diameter of the retaining ring (as shown in the figure below) is 50mm and the thickness is 3.5mm; The diameter of the middle inner hole is 24 millimeters, the diameter of the outer ring of the shaft sleeve is 30 millimeters, and the total height is 36 millimeters.

The outer diameter of the upper part of the support foot with nylon sleeve is 50 millimeters, the depth of the shaft hole is 31 millimeters, and the inner diameter of the circular hole on the side of the SJ44 support foot is 12 millimeters. This support foot is estimated to be on the side of wall panel 4301 of the weaving machine.

The base plane of SJ-44 is 137+0.1 millimeters away from the center of the shaft hole of the upper vertical shaft, and this support foot is also marked with SJ44-1. The weight of a single support foot is approximately 1.394 kilograms, with 10 pieces per string.

If you need to purchase SJ-44 R/L vertical shaft support feet, GA615/1515 wide loom warp delivery accessories and other products, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit and guidance.
