Huixian Xinda Textile Machinery Parts Co., Ltd. provides Auto Loom Sleeve For Temple Roller 3900-1B,Temple Roller,Sleeve,Bronz Ring,Loom Equipment,Auto Loom Parts,three rows of edge support piercing ring pieces, weaving machine copper piercing ring accessories 3900-1B, weaving machine ring pieces, textile piercing ring pieces, shuttle weaving edge support piercing rings, old fabric machine copper piercing rings, shuttle weaving machine accessories, and weaving textile equipment; The specifications of copper temple roller used in woven fabric machines generally include 7 rings, 10 rings, 13 rings, and 14 rings. Currently, 10 ring spikes are the main ones, and edge support spikes are an important component of copper spikes. Its spike height is reasonably selected according to the fabric material and thickness.

The main material of the edge support piercing ring is copper Cu, with a conical surface. It moves with the movement of the fabric surface and is used to stretch the width of the fabric surface, that is, to tighten the fabric surface. Each weaving machine uses 2 sets of copper piercing shafts (referred to as 1 set).

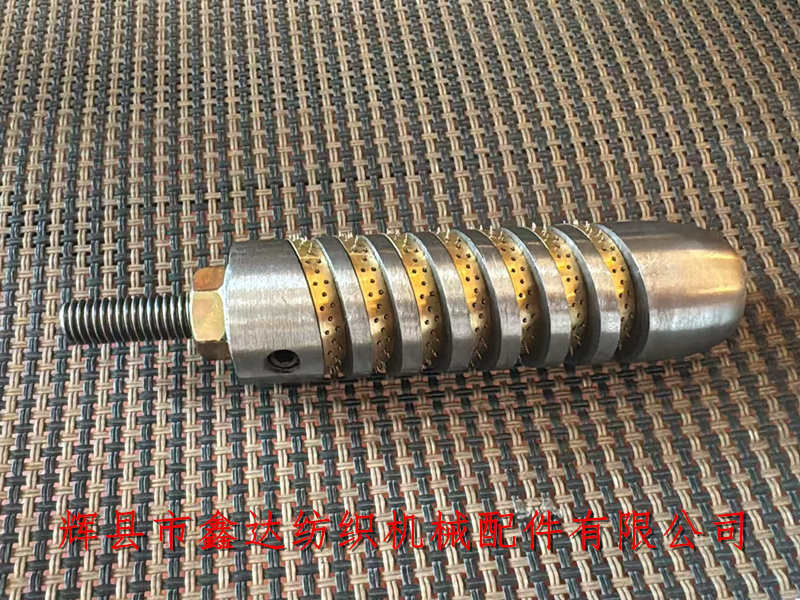

Its arrangement is shown in the above figure. The copper spikes are not divided into left and right hands. When the copper spike shaft is fixed in the edge support box of the weaving machine, the upper needle puncture contacts the fabric surface. The inner cavity of some edge support piercing rings is embedded with nylon rings, which have a slightly lower cost compared to copper ring pieces.

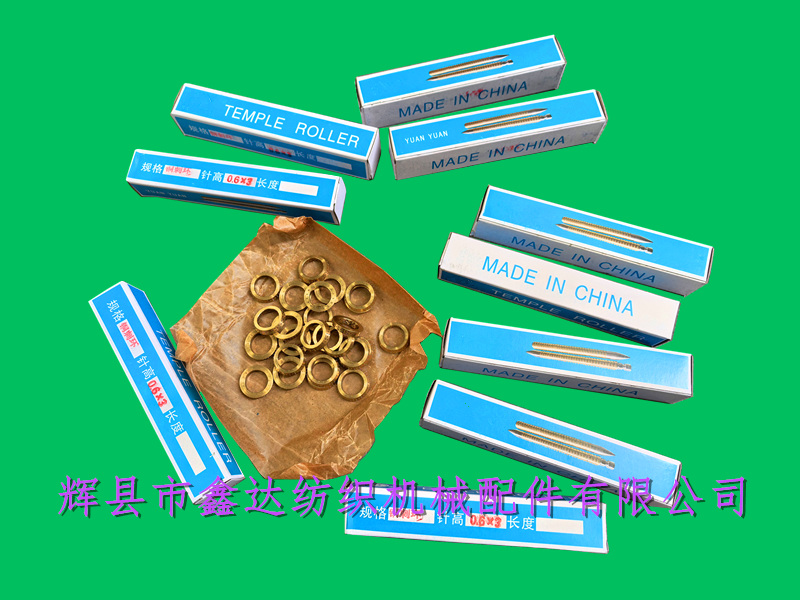

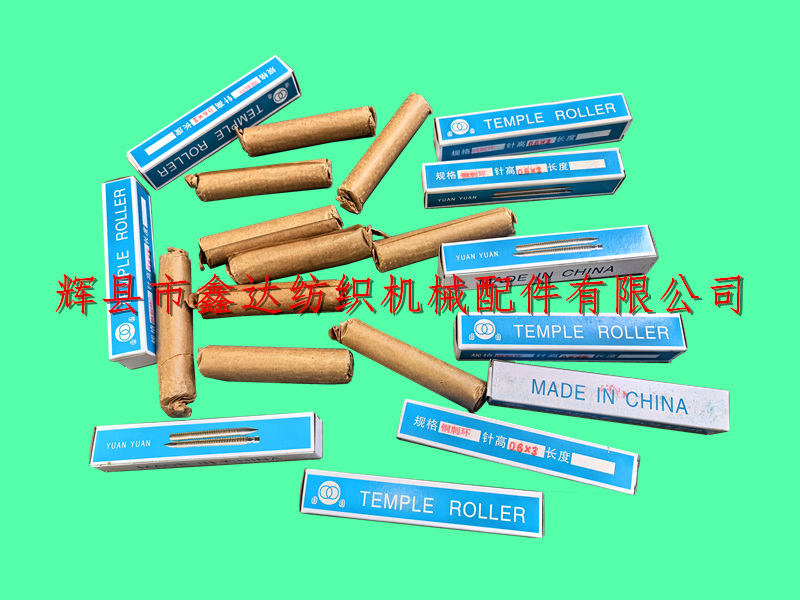

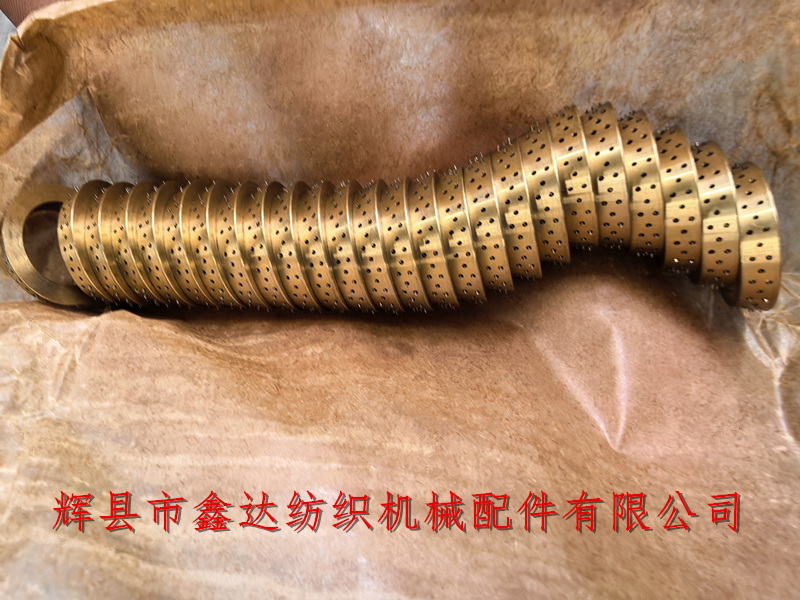

The packaging for the 3900-1B edge support piercing ring joint is: 25 pieces per roll (weighing approximately 185 grams), wrapped in kraft paper, with 10 small packaging boxes per box, totaling 250 pieces (weighing approximately 1.94 kilograms). The packaging is as follows:

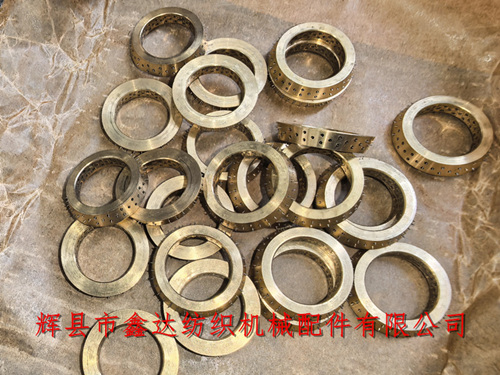

The inner diameter of the 3900-1B Sleeve For Temple Roller is 16mm, which is composed of a 3918 ring body (brass material), a 3919 long needle (60Si2MnA material), and a 3921 short needle (60Si2MnA). During installation, the gap between the piercing ring and the edge support box screw rod 3915X3922 should not exceed 0.2mm, and the gap between the piercing ring and the edge support box cover 3910X3914 should be between 0.4-0.8mm. The needles of each ring should be flat and the height difference should not exceed 0.2mm.
