Huixian Xinda Textile Machinery Parts Co., Ltd. provides S11 treadle heel bracket for 1/2 2/2 3/1 twill looms. The twill accessories for shuttle looms are divided into 1/2 twill, 2/2 twill, 3/1 twill, and 4/1 twill. The S11 tread rod hanging feet are mainly used for 1/2, 2/2, and 3/1 twill devices. Its base length is 8 centimeters, width is 6.6 centimeters, and thickness is 1.6mm. The shaft hole diameter of the tread rod bolt is 20mm, and the outer ring width is 40mm.

The diagonal tread rod hanging foot S11 is installed on the rear crossbeam P5 of the 1511 type weaving machine, and is connected to the S12H tread rod bolt to fix the diagonal tread rod. The number of uses for each weaving machine is one.

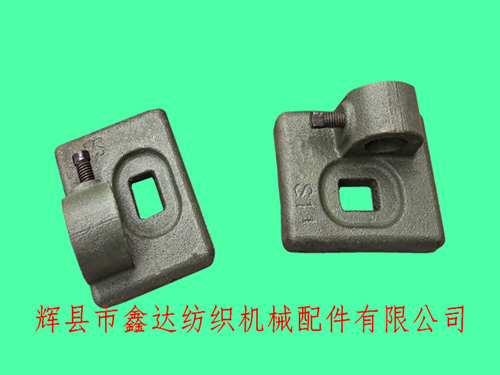

The above picture is a multi angle view of the S11 pedal rod hanging foot. This accessory is not divided into left and right hands, and the support head screw is used to fix the pedal rod bolt. The depth of the shaft hole is 20mm. The material of the S11 pedal rod hanging foot for the 1/2/2 3/1 twill weaving machine is HT15-33, color: green, which is a simplified evolution of the S11H integrated hanging foot.

If you need to purchase 1511 twill loom parts, diagonal weaving machine accessories, 44 inch diagonal tread rods, weaving machine diagonal hanging feet, 1511-S11 Treadle Heel Bracket and other accessories, please contact Mr. Yang from our company for consultation.
