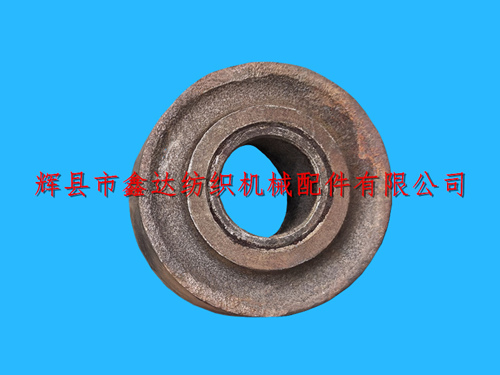

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1200-4 (S9 Treadle Bowl+S174 Bushing) treadle rotor. The diagonal 1200-4 treadle lever rotor is composed of S9 treadle bowl and S174 oil containing bushing. The material of S9 rotor is HT15-33 (cold hard), with an outer diameter of 64mm and an inner hole diameter of 30mm. The inner diameter of S174 powder metallurgy bushing is 24mm, the outer diameter is 30mm, and the face width is 30mm.

1200-4 can be used for twill looms such as 1511, 1515, GA615, etc. The number of used on 1511 and 1515 (56 inch) looms is 4, and the number of used on 75 inch looms is 8 (double tread disc type).

The outer ring surface of the treadle lever rotor S9 used in the diagonal device has undergone cold hardening treatment, and the contact surface width with the shuttle loom tread plate (peach plate,Twill Tappet) is 25mm. The gap between the tread rod rotor 1200-4 and the rotor core shaft S10 is less than or equal to 0.4 millimeters.

The weight of a single 1200-4 tread rod rotor is approximately 0.45 kilograms, and the packaging for 1200-4 (S9 treadle bowl+s174 oil bearing bushing) tread rod rotors is 10 pieces per string;

If you need to purchase 1511 diagonal rotor, Twill loom Spare Parts,1515 treadle lever bowl, Ga615 bushing and other woven fabric machine accessories, please contact Mr. Yang from our company for consultation.
