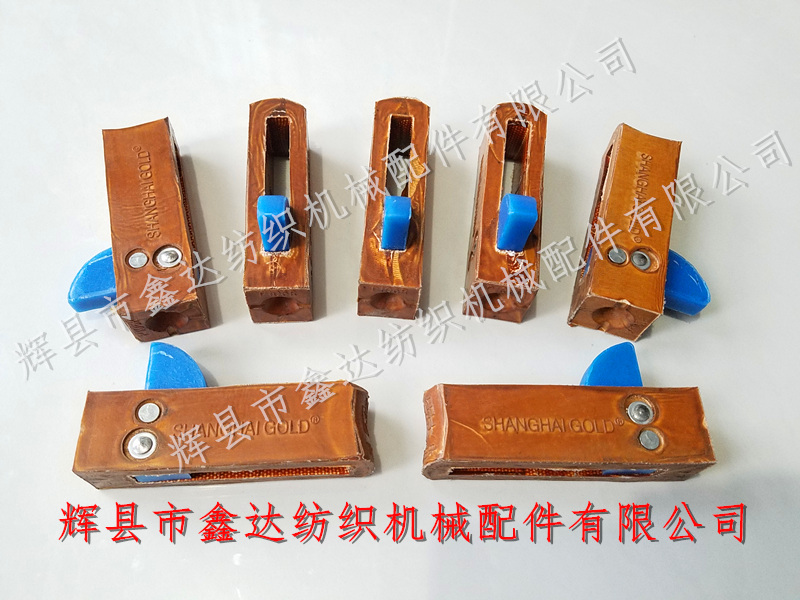

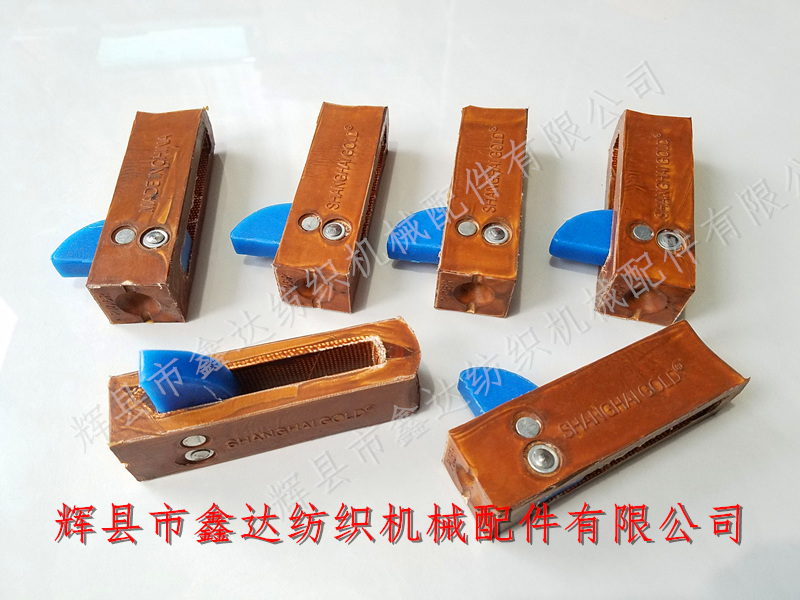

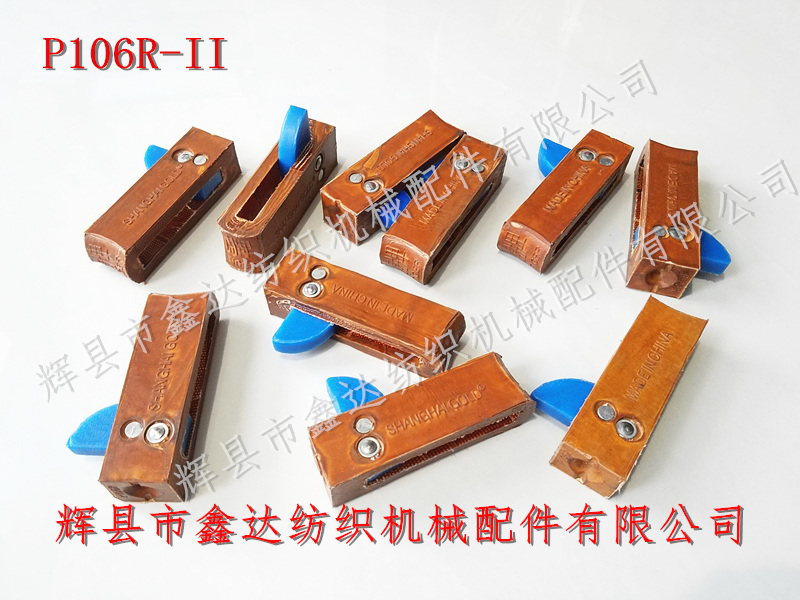

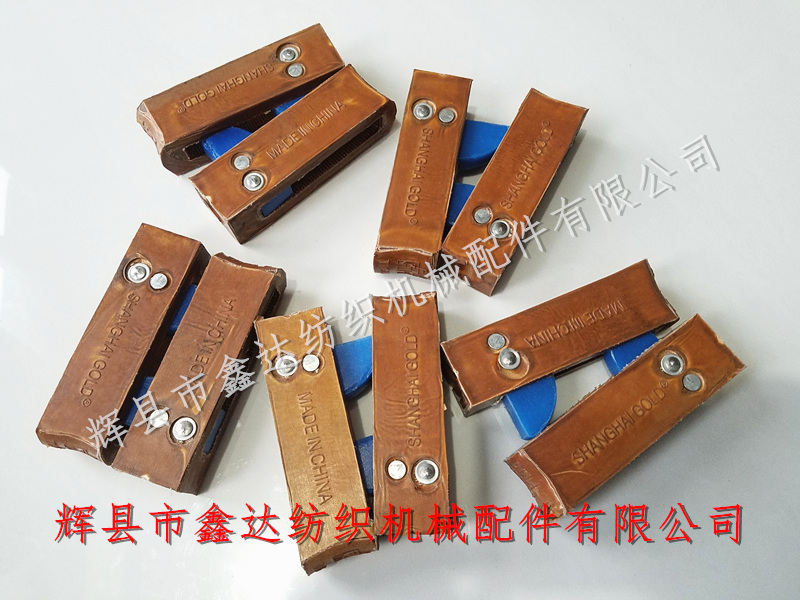

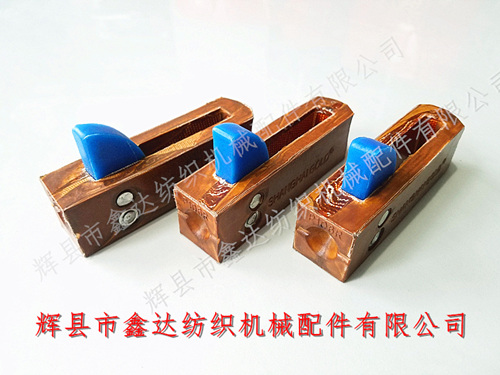

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides P106R-II Picker (Small) Textile Machine Parts, leather equipment for P106R-II leather knot (small picking knot) textile machine. P106R picking knot is divided into two specifications, and their height is the same (27.5mm). The length of P106R-II Loom picker is 99mm, the bottom width is 24.7mm, the middle beating chute is 10mm, and the effective inner length of the upper part of the chute is 46.5 mm.

The tongue color of textile machinery equipment -P106R-II picker is blue, the total height (leather tongue position) of loom picker is 49.8mm, the inner length of the chute at the bottom is 55mm, and the two sides are perpendicular to the bottom (90).

The blue skin knot tongue is 48mm in length, 23mm in width and 9.9mm； in thickness. Textile Equipment -P106 leather knots are packed in cartons, each containing 200 pieces, and the weight of a single leather knot is 70.5g..

P106R-II picker is a small leather knot, the main material is rubber+nylon cloth, and the leather tongue is made of modified polymer nylon material, which is connected with the shuttle bar on the loom, and the number of each loom is two.

If you need to purchase textile picker, P106 leather knot, small shuttle knot, machine leather, rubber textile equipment and other products, please contact Mr. Yang of our company for consultation, and sincerely welcome everyone to come!
