Huixian Xinda Textile Machinery Parts Co., Ltd. provides 6# Cowhide Picker Leather Knot For Looms,a small amount of 6# leather knots, textile machinery equipment, and shuttle looms made of cow leather. The material of the 6 # leather knots is generally raw pig leather or cow leather. The detailed dimensional parameters of the leather parts of this shuttle loom are: the total length of the bottom surface of the 6 # leather knot body is 108mm, the total length of the waist is 104mm, the total length of the upper plane is 107mm, the width of the bottom surface is 32mm, and the total height is 36.5mm; the inner width of the shuttle board groove is 10mm, and the upper inner length is 57mm. The 6# cowhide picker is used in weaving equipment of shuttle textile machinery.

The total height of the Liren (rivet fixed tongue of the skin knot) in the middle of the 6 # skin knot (shuttle knot) is 52.3mm, and the height of the protruding surface of the skin knot is 16mm. The length of the Liren's upper surface is 16mm, and the width is 9.5mm.

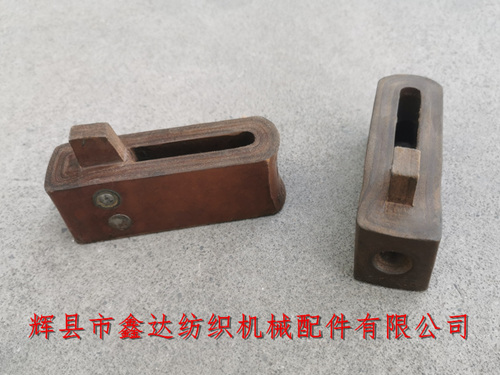

The leather structure of this cowhide material is divided into left and right hands (as shown in the picture above). From the position of the shuttle point, the leather structure is inclined left and right as a whole. The left hand is inclined 3.5 ° to the left (the bottom and right sides form an angle of 86.5 °), and the right hand is the opposite (the right side in the picture is the leather structure of the right hand). We are #6 picker, a supplier of shuttle textile machinery accessories, textile equipment leather parts, shuttle knots, and shuttle loom leather.

The weight of a single 6# cowhide picker is about 124 grams, and the outer diameter of the shuttle point of the textile machinery accessory -6 # leather knot is 15mm and the depth is 10mm. Two rivets penetrate and fix the Liren (cowhide tongue) from both sides.

If you need to purchase 6# picker (leather knots), including shuttle textile machinery equipment accessories, shuttle weaving machine cowhide throw shuttle knots, or other detailed dimensions and parameters about 6 # leather knots, please contact Mr. Yang from our company. We sincerely welcome your visit.
