Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511 twill loom accessories -1200-3 second piece treadle lever twill loom parts. It is composed of S4 tread rod (material HT15-33) and two nylon bushings 3122, which are connected to S12 treadle lever rod bolts on the diagonal weaving machine. The parameters of the 1200-3 second piece tread lever are: the total length is 55 centimeters, and the distance from the center of the rectangular box to the center of the 3122 axis hole is 241mm (the same size as other diagonal tread rods).

The following figure is a schematic diagram of the 3/1 treadle lever combination of the diagonal device, which is composed of four different lengths of tread rods:

They are 1, 2, 3, and 4 in order from top to bottom, with the third piece of the tread bar being straight, the fourth piece bent to the left, and the other two pieces bent to the right.Treadle lever, Twill Treadle,Twill Loom Parts,1200-3 No.2 Treadle Lever Twill Loom Parts.

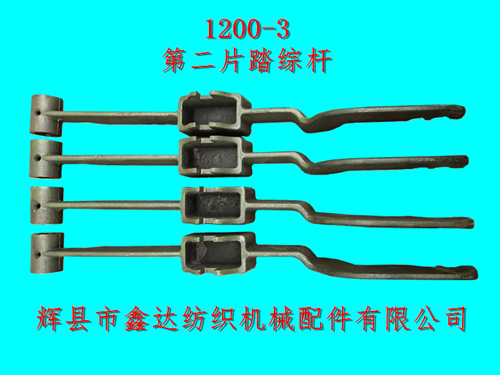

The weight of a single diagonal accessory 1200-3 (second piece of tread rod) is approximately 2.15 kilograms, and the overall shape is curved and upturned (see figure below); The treadle lever is mainly used for the lifting part in the weaving process of twill fabrics, and belongs to the opening accessory of the loom together with the twill tread plate.

If you need to purchase 1511 old fabric machine accessories 1200-3 twill tread rod or learn about its other detailed parameters, prices and other information, please contact Mr. Yang from our company. The minimum order quantity for this product is 5 pieces, with payment before delivery. The agreed delivery time will be arranged, and the delivery method will be logistics or express delivery.
