Huixian Xinda Textile Machinery Parts Co., Ltd. provides F105 eccentric disc | eccentric wheel | three-gear buffer mechanism components. The F105 eccentric disc, also known as the eccentric wheel, is a part of the buffer structure component for the loom after the shuttle is thrown. The F104 overbridge wheel, F105 eccentric wheel, and F107/F108 spring wheel (disc) are collectively referred to as the three-wheel buffer, primarily assisting the loom side plate (lower striking bar). The material of the F105 is gray cast iron, with two units required per loom (one installed on each side of the left and right side plates).

The three wheel buffer of the weaving machine is installed on top of the buffer feet of F101 or F102. The installation requirements are that the linear distance between the spring discs F107 and F108 and the buffer feet F101 and F102 is 7-10 millimeters, with a permissible difference of+3 millimeters. The buffer force of the spring discs is generally 2-2.5 kilograms.

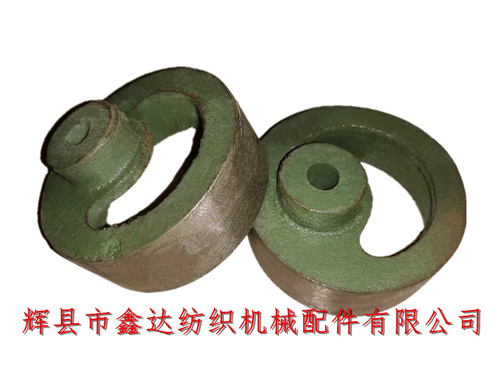

The above picture is the back image of the eccentric wheel F105. The diameter of the shaft hole is 12 millimeters, and the outer diameter of the eccentric disc is 89 millimeters. The eccentric disc is not divided into left and right hands. F105 eccentric disc | eccentric wheel | three wheel buffer mechanism accessories are important components of the shuttle structure of the weaving machine. The following are the front and back views of F105:

F105 eccentric disc is suitable for shuttle looms of models 1511, 1515, GA615, etc., and can be used for looms with different width widths; If you need to purchase or learn about textile eccentric discs, F105 eccentric wheels, three wheel buffers and other weaving machine accessories, please contact Mr. Yang from our company. We sincerely welcome new and old customers from all over the city to visit and guide us!
