Huixian Xinda Textile Machinery Parts Co., Ltd. provides long-term supply of 1200-1 (S2) Treadle Lever twill accessory, 1200-1 fourth piece (S2) tread rod 44 inch 3/1 diagonal accessories. The 1200-1 tread Lever is composed of S2 tread rod and 1515-3122 lining. The material of S2 is gray pig iron, and the material of 3122 is powder metallurgy or nylon. The total length of this Twill tread lever is 50.5 centimeters, and the distance between the outer side and the front of the rectangular box is 20 centimeters. S2 treadle lever is a diagonal tread, which belongs to the category of old fabric machine accessories and is also a diagonal weaving machine accessory.

The tail of the fourth pedal rod has oil injection holes, and the inner sides of the holes are 3122 bushings. Its part number is 1511-1200-1, which is combined with 1200-2, 1200-3, and 2200-3 to form a diagonal pedal rod assembly.

The S2 tread rod is installed below the 1511 loom, and the 1200-4 tread rod rotor and S10 rotor small shaft are installed inside the rectangular box. The rotor rotates with the tread plate inside the box.

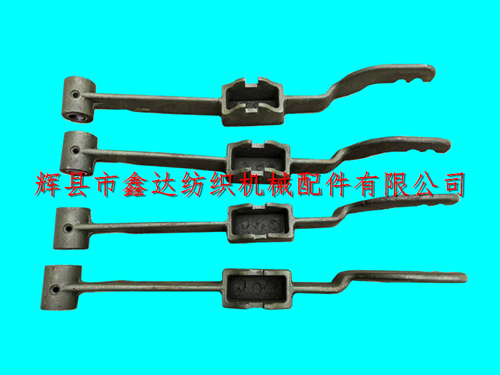

The above picture shows the details of the front part of the S2 pedal lever. The front part is bent to the left, and the width of the square groove in the middle of the rectangular box is 18mm. The weight of a single 1200-1 pedal lever is approximately 2.1 kilograms.

If you need to purchase 1200-1 fourth piece (S2) treadle lever 44 inch 3/1 twill loom accessories, S2 tread rod, 1511 diagonal tread rod, 1515 tread lever, diagonal old fabric machine accessories and other products, please contact Mr. Yang from our company for consultation. You can also contact us for information on other parameters and price trends of this pedal.
