Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides O-type 11 inches/13 inches Wire Heald For Automatic Drawing-in,stainless iron material for O-type 280/330 healds to automatically thread steel healds. O-type steel healds are textile equipment products, which can be divided into 280 and 330 according to length, and stainless steel and stainless iron according to materials. 280mm(11") and 330mm(13") refer to the outer dimensions of two healds that thread into healds.

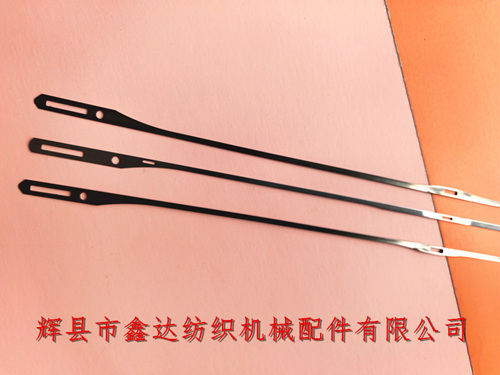

The steel heald in the middle of the above picture is used for automatic heald threading (there are rectangular holes under the heald ears), so it is necessary to divide the double rows into single rows, the specification is 330*5.5*1.2-O type, the thickness is 0.3mm, and the material is stainless iron; The other two are common, the specification is 330*6.5*1.8-O, the thickness is 0.3mm, and the material is stainless steel.

They are packed in wooden cases, with 500 pieces in each bundle and 10,000 pieces in each box. The above picture shows the comparison between the close-range heald eye and the heald ear, and there are differences in the periphery of the large-hole heald eye and the small-hole heald eye. The total length of O-type 280/330 heald and automatic heald steel heald (stainless iron) is 289mm and 338mm respectively.

The above picture shows the packaging picture of O-type heald, which is the comparison between 280mm and 330mm. The 280mm wire heald is a 5.5*1.2mm heald eye and the 330mm stainless iron wire heald is a 6.5*1.8mm heald eye.

If you need to purchase steel sheet wire, O-shaped wire,O-type Stainless Iron Wire Heald For Automatic Drawing-in, automatic threading steel sheet wire, 280 textile equipment, 330 stainless iron wire and other products, please contact Mr. Yang from our company for consultation.
