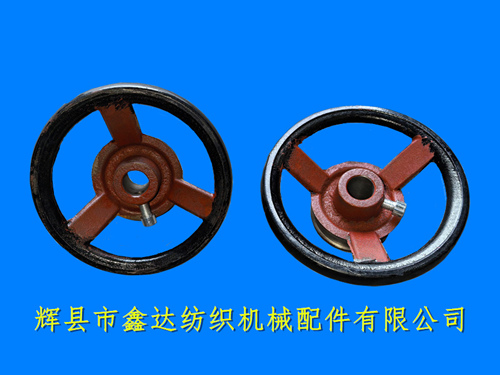

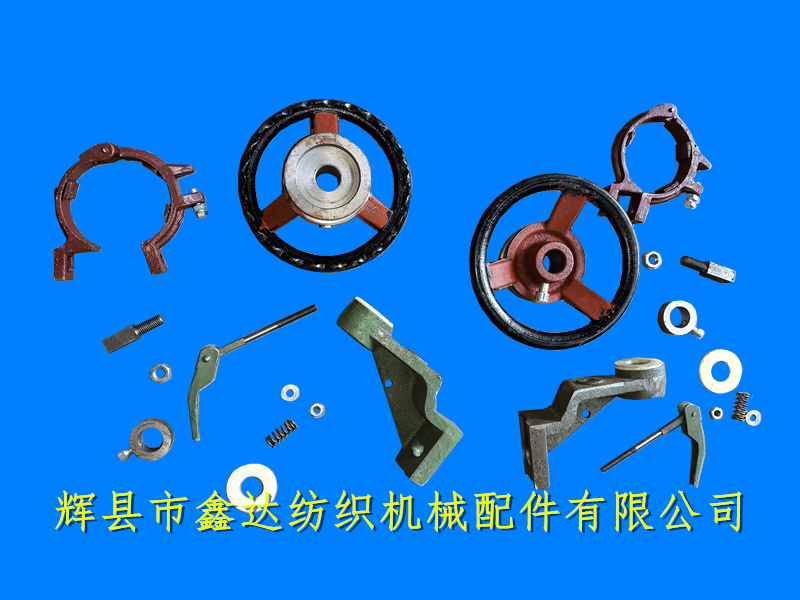

Huixian Xinda Textile Machinery Parts Co., Ltd. provides SJ-45 Fly Wheel Loom Let-off Cast Iron Parts,cast iron parts for SJ-45 hand wheel external warp delivery weaving machines, including shuttle wide weaving machine parts. The outer diameter of the handrail outer ring of the SJ45 hand wheel is 178 millimeters, the outer diameter of the circular table clamped by the Hafu ring is 83 millimeters, the diameter of the middle inner hole is 24 millimeters, and the diameter of the outer circular table is approximately 43 millimeters. The total height is 70 millimeters, and it belongs to the same weaving machine hand wheel.

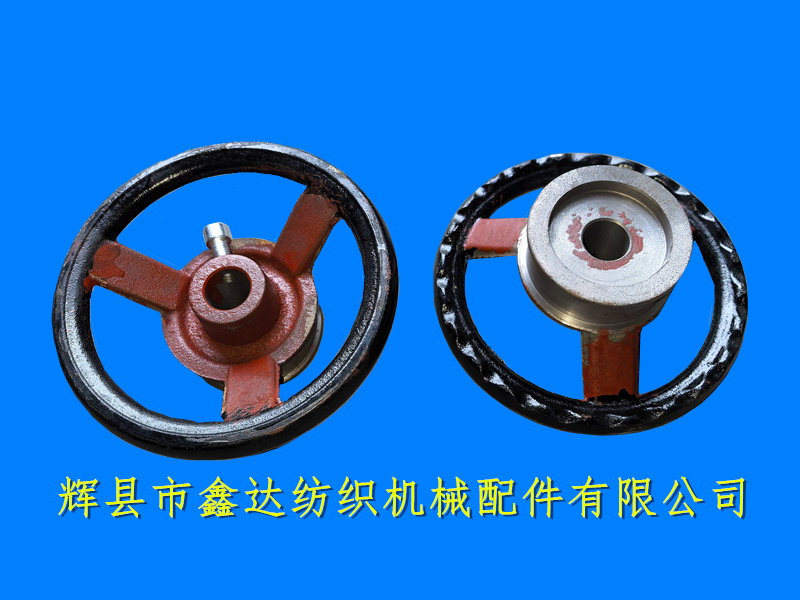

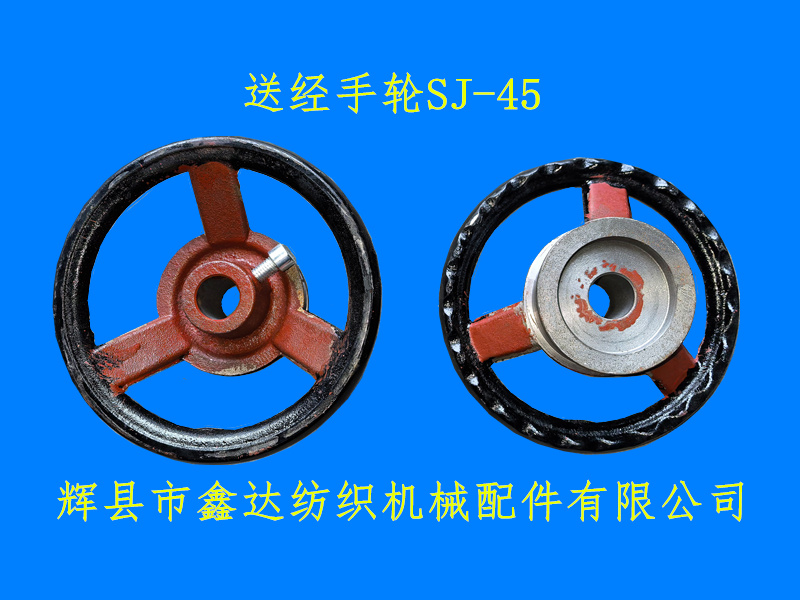

The above picture shows the front and back of the SJ45 prayer wheel; The main body of the handwheel is made of ductile iron material, with a layer of iron sheet wrapped around the outer ring (black outer ring). The inner diameter of the groove on the back is 62 millimeters, and it comes into contact and friction with the SJ-46 washer (outer diameter 50mm, inner hole diameter 24mm, thickness 15mm).

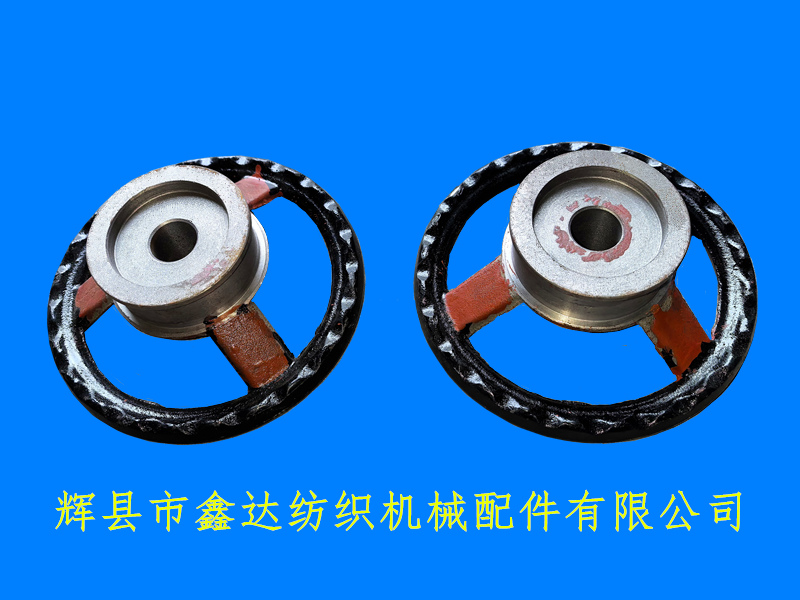

The above picture is a side view of the SJ-45 hand wheel for external transmission; The SJ45 handwheel of the weaving machine is fixed at the upper end of the warp feed shaft, and the support screw is tightened against the flat position of the shaft to manually rotate the shaft and drive the worm gear for warp feed and withdrawal.

Handwheels are not divided into left and right hands. The weight of a single handwheel is 2078 grams, and the installation position is flush with the upper plane of the weaving machine wall panel. SJ37 and SJ-38 tension rings are installed in the grooves machined on the side for braking during the movement of the warp feed shaft.

If you need to purchase textile machine handwheel SJ45, Fly Wheel,Loom Parts,Cast Iron,Let-off,machine delivery parts, SJ delivery accessories, and other woven machine cast iron parts, please contact Mr. Yang from our company for consultation.
