Huixian Xinda Textile Machinery Parts Co., Ltd. offers Textile Equipment-Stainless Steel Droppers 165/180 Open/Close type,stainless steel heddles in various models and specifications, including 165/180 open and closed types. The heddles primarily used for rapier and air-jet/waterjet weaving machines are mainly available in lengths of 165mm and 180mm. The materials for open and closed heddles are stainless steel, with a sloped head at the front. The sliding slot at the top is designed for threading the heddle strip, while the width of the closed sliding slot is 5mm. The inner width of the middle threading hole is 6mm, and the inner height is 10mm (including arc-shaped or beveled holes).

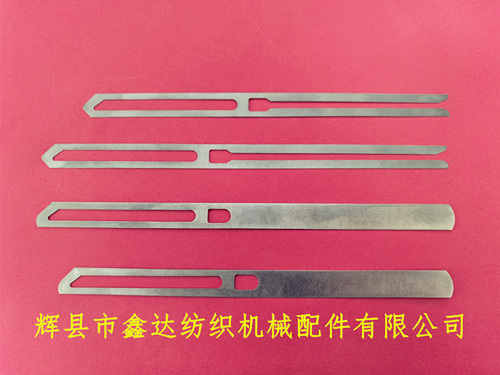

The Stainless Steel Droppers is divided into open warp stopping film and closed warp stopping film. They are similar textile machine materials, with an outer width of 11mm and an inner width of 3.2mm for the lower opening. The above picture is a 180 * 11 * 0.3mm open warp stopping film taken from a physical object.
The use of stainless steel material for the closed stop warp plate is due to the fact that when the weaving machine stops due to a broken warp, it relies on the local short circuit triggered by the falling of the stop warp plate to achieve the output of the stop signal. The stainless steel stop plates of various models and specifications are 165/180 with open and closed ends, made of the same material and processed by stamping. The above picture is a real-life shot of a 180 * 11 * 0.4 closed stop plate.
The 165mm warp stopping plate is mainly used for rapier looms or partially modified shuttle looms. The above picture shows an open warp stopping plate of 165 * 11 * 0.3mm, where 165mm is the total length of the warp stopping plate, 11mm is the overall width of the warp stopping plate, and 0.3mm is the thickness of the warp stopping plate.
The thickness of the warp stop pad is selected based on the warp tension of different fabrics. Thick fabrics have higher warp tension and lower weft density, so thicker warp stop pads are used.
If you need to purchase 165 warp steel droppers, 304 stainless steel warp stopping plates, 180 open stainless steel droppers, 165 closed droppers, and other woven machine materials, you can contact Mr. Yang from our company for consultation.
