Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511-M34 Upper Heald Frame Adjusting Screw, accessories for 1511-M34 upper hanging Heald Frame screw weaving machine Heald Frame. The weaving machine Heald Frame is pulled by the upper Adjusting Heald Frame and the lower hanging comprehensive hook. The installation position of M34 Heald Frame hook screw is above the weaving machine Heald frame, so it is called the upper hanging comprehensive hook. Its tail circular hole center is 68mm away from the front of the screw, and the main thread is M8. The circular hole position is connected to the weaving machine Heald Frame belt R36, and the lower screw is connected to the upper Heald Frame basket (adjusting nut M33).

The material of the M34 hanging hook screw (screw) is steel 20, with a galvanized surface (colored zinc) and a flat tail for better fit with the hanging hook. The screw has a regular positive thread pattern, and the other side of the adjusting nut has a reverse thread.

Under normal circumstances, each weaving machine has two pages of heald frames, with one M34 hanging heald screw on each side of each page. Therefore, each weaving machine uses four M34 screws.

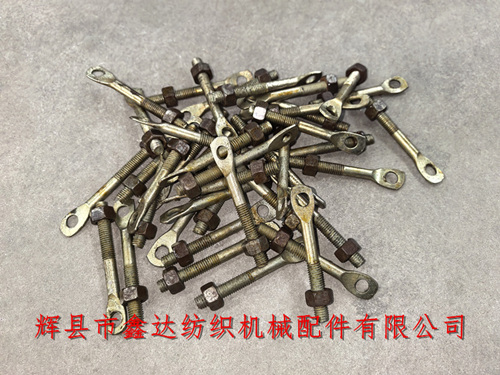

In the above picture, the total length of the Adjusting screw on M34 is 80mm, and the inner diameter of the circular hole is 8mm. This component is mainly used for plain weave weaving machine equipment to match seamless flat tube type heald frames. If you need to purchase textile hanging hooks, 1511 weaving machine frames, frame accessories, shuttle machine screws, and other textile hardware products for shuttle machines, you can contact Mr. Yang from our company for consultation.
