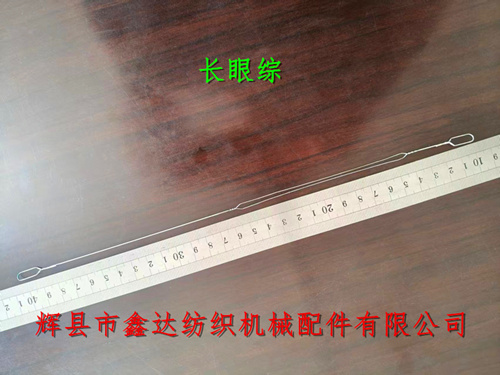

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 12"X26G Long Eye Steel Wire Heald Tin Welded Heddle,305mm*0.45mm long eye heddle, weaving machine steel wire heald, and tin welded steel wire heald.Wire Heald,Heddle,Steel Wire Heald,Long Eye Wire Heald,Tin Welded Wire Heald,Textile Equipment, 305 refers to the inner length of the two wire ears of the wire, which is 305mm, and 0.45mm refers to the diameter (thickness) of a single tin welded steel wire. The long eye wire is also known as the "edge wire" or "locking edge wire". It is a shuttle textile equipment product and is an auxiliary wire for weaving. The starting point of the long eye of the steel wire wire is from 43mm to 155mm (see figure below).

This type of yarn is similar to a twisted edge yarn (companion yarn) and is used for the fabric edge (lock edge) during weaving; The packaging for the wire harness is 500 pieces per pack and 50 packs per box (25000 pieces). In general, the wire harness mainly follows the up and down movement of the harness frame to drive the opening and closing of the warp yarn, that is, the formation and closing of the shuttle opening.

The inner size specifications of the long eyed wire heald are: inner length 13mm, inner width 5mm; there are various specifications of woven heald, and different types and specifications of steel wire healds have different uses and functions.

Affected by the rise in domestic soldering raw materials, the price of this wire harness is based on the actual order time quotation. Due to the difficulty of processing this long eyed harness, the production and delivery time will increase with the increase in quantity.

Textile processing manufacturers, domestic trading companies, weaving processing enterprises, etc. in various cities who need to purchase products such as long eye healds,12"X26G Long Eye Steel Wire Heald Tin Welded heddle, special shape healds, weaving steel wire healds, and woven textile equipment, please contact Mr. Yang from our company for consultation.
