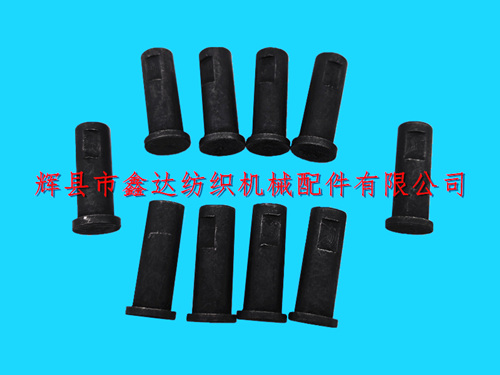

Huixian Xinda Textile Machinery Parts Co., Ltd. provides C27 Connecting Link Pin Tension Adjusting,components for the tension adjustment device of the C27 connecting rod core loom. The main body of the C27 connecting rod pin shaft has a diameter of 12mm and a length of 34mm. The shaft body features a flat platform for securing the head screw. The outer diameter of the tail retaining ring is 16mm. After passing through the corner hole of the C5 adjustment weight lever of the loom, the C27 penetrates into the round hole with a head screw hole on the C12 adjustment weight rod hanging bracket and is fixed on the P1 wallboard of the loom.

The total length of the C27 pin is 36mm, and the number used per loom is 2 (C27 connects the C5 and C4 connecting rods). Components such as the tension adjustment fan brake C00-5, C1/C2 (Bracket for back rod)rear rod support feet, C3 tension fan rod, C6 (adjusting weight)adjustment weight, C7 (set hoop for pin of sector lever)fan rod neck ring, C8 (Pin for sector lever)tension fan rod core shaft, and C9 (Tension brake lever)fan brake rod are key components of the 1511 tension adjustment device.

The C10 fan brake lever hanging feet are divided into left and right hands, with one used for each loom. The installation requirements for the C16 (Bowl for tension brake lever)brake lever pulley are: it should be 3mm away from the loom's bending shaft cam D11, with the bending shaft on the top center, and the tension fan rod should be flush with the top of the brake.

If you need to purchase products such as 1511 tension accessories, C27 connecting link pin, weaving machine tension adjustment device components, 1515 connecting rod, shuttle weaving machine spindle, 44-inch old loom accessories, etc., please contact Mr. Yang from our company for consultation. We sincerely welcome new and old customers from home and abroad to visit and guide us.
