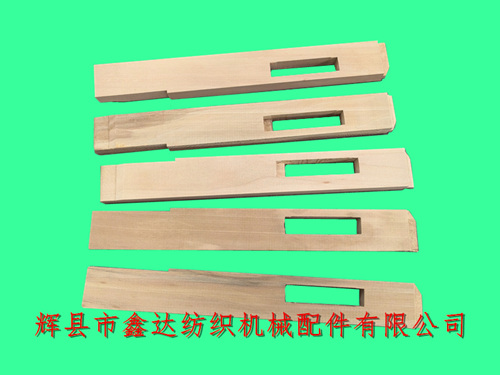

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515-3304/1511-Q4 Shuttle Box Loose Back,shuttle box accessories|movable backboards|weaving machine backboards|backboard tongues|textile wooden parts. The 1515-3304/1511-Q4 shuttle box accessories have movable backboard tongues. The movable backboard tongues used in 1515 and GA615 weaving machines are 3304, with a total length of 421mm, and 1511-Q4 have a total length of 383mm. Their appearance is similar, but the distance between the installation position of the shuttle iron and the gap is different. Other parameters (width, thickness, etc.) are the same.

The rectangular hole in the middle of the backboard tongue is used to install K00-6 (K95+R53 combination) shuttle iron. The shuttle box backboard tongue is divided into left and right phones. Under normal circumstances, the shuttle iron is divided into left and right hands, but the schematic book shows that it is not divided into left and right hands.

The backboard tongue is connected to the Q3 or 3303 shuttle box backboard using K48. Its main function is to assist in stopping the shuttle by relying on the shuttle iron. Each weaving machine uses two, one for the left hand and one for the right hand.

The packaging for the shuttle box backboard is: 40 per bundle, 20 for the left hand and 20 for the right hand. Installation and usage requirements: The thickness should be greater than 13 millimeters, and there should be no twisting in the position of cracks or joints. It must be flexible and the pushing angle should reach about 30 degrees.

If you need to purchase 1515-3304/1511-Q4 Shuttle Box Loose Back, 1511 shuttle box accessories, 1515 movable backboards, GA615 loom backboards, G611 backboard tongues and other textile wooden products, please contact Mr. Yang from our company for consultation.
