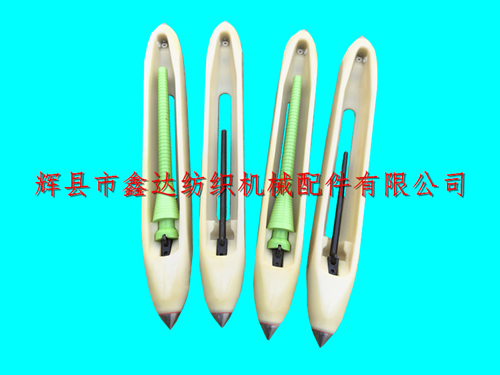

Huixian Xinda Textile Machinery Parts Co., Ltd. provides a 38cm nylon shuttle with a single rod straight neck weaving shuttle reinforced with MC modification. The straight neck nylon shuttle with a single rod shuttle core has size parameters: a total length of 380mm, an outer width of 44.6mm at the bottom of the shuttle, a height of 35mm, a width of 31mm inside the shuttle, a total length of 277.5mm, and an effective length of 235mm.

The yarn output design of the 380 nylon shuttle consists of three ceramic material ceramic eyes, which have various threading combinations. At the same time, the inner holes of the ceramic eyes are coated with porcelain glaze, which is smooth and delicate. The weft groove of the shuttle tube is closely adhered to the straight neck of the weft tube. This weaving shuttle is made of reinforced MC modified material, which is anti-static, wear-resistant, and has a long service life.

The left-handed shuttle and right-handed shuttle are determined based on the orientation of the shuttle's yarn output side. The packaging of the shuttle is 50 pieces per box (with the same hand, i.e. both are left-handed or right-handed). The angle between the side of the yarn and the bottom plane of the shuttle is 90 degrees, and the angle between the other side and the bottom plane is 86.5 degrees.

If you need to purchase products such as 38cm nylon shuttle, single rod straight neck weaving shuttle,Loom Shuttle,Nylon Shuttle,Single Rod,Straight Neck Shuttle,Textile Equipment, reinforced MC modified nylon shuttle, etc., please contact Mr. Yang from our company for consultation. We welcome everyone's visit and guidance.
