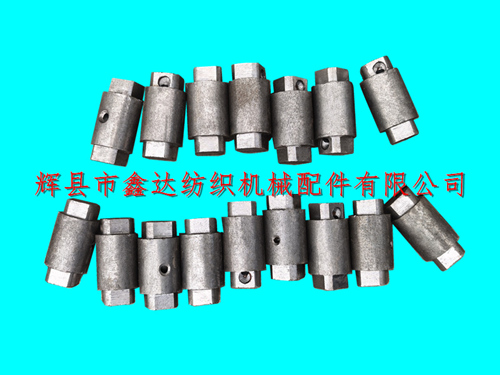

Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing Twill Loom 1511-S10 Treadle Bowl Arbor,twill machine accessories S10 tread rod rotor small shaft (core shaft,treadle bowl arbor) for a long time. The two ends of the S10 core shaft are square with a side length of 17mm, and the middle is a circular shaft with a diameter of 24mm. There is an inclined oil injection hole above the square section on one side. The length of the circular shaft is 30mm, and the length of the square heads on both sides is 9mm, which means the total length of S10 is 48mm. The installation gap between the shuttle loom accessory S10 and the arbor is less than 0.2mm, and the rotation is smooth.

S10 (twill tread bowl arbor core shaft) can be used on twill weaving machines of models 1511, 1515, GA615, etc., connected to S2, S3, S4, S5 tread rods. The outer oil injection hole is diagonally drilled through the middle position of the shaft to provide lubrication for 1200-4 (S9 tread rod rotor).

Each weaving machine uses the same number of S10 as the number of tread rods, with each tread rod corresponding to a rotor core shaft. The number of S10 used is not related to the length of the tread rods, and the weight of a single S10 rotor core shaft is approximately 0.14 kilograms.

The material of the S10 core shaft for the treadle lever of the twill loom accessory is cold drawn A3, with a slightly soft shaft hardness. The A6 rotor core shaft size used in the shuttle plain cotton weaving machine is: total length 55mm, shaft diameter 22mm (relatively fine), and material HT15-33 (processed after sanding with gray pig iron).

If you need to purchase 1511 twill looms, 1515 twill accessories, textile machine treadle levers, treadle bowl arbor and other shuttle loom accessories, please contact Mr. Yang from our company for consultation. Welcome everyone to visit.
