Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides various types and specifications of stainless steel wire healds (flat steel wire healds with slip rings). The main material of the steel wire healds is flat stainless steel wires, which are cut in the middle, put into the slip rings (Hua Si rings) and then fixed by soldering. Such flat steel wire brown wires have the characteristics of being difficult to rust, high in strength and thin in heald eye thickness.

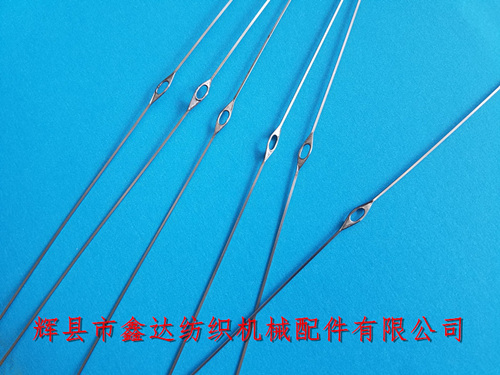

The above picture shows the heald eye of stainless steel flat steel wire with 355R slide ring embedded. The width of flat steel wire is 0.8mm and the thickness is 0.4mm. This kind of steel wire heald is stable in overall structure, strong and wear-resistant, and is suitable for various looms in weaving factories.

Stainless steel healds are mainly used for sorting and layering warp yarns in the weaving process, so as to form a clear shed, and their consistency will affect the forming of the shed; Under normal circumstances, the minimum order quantity of flat steel wire healds is 60,000, and the position of heald eyes can be appropriately shifted.

There are various specifications for the heald eyes of tin-welded steel wire healds: 355R (inner height 5.2* inner width 2.2 * thickness 0.55mm), 1080R (inner height 6.6* inner width 3.9* thickness 1.2mm), 1010R (inner height 2.6* inner width 0.9* thickness 0.4mm), and 1020R (inner width 0.4mm).Flat Stainless Steel Wire Heald With Slip Rings.

If you need to purchase or understand stainless steel wire healds (flat steel wire healds with slip rings), shuttle loom healds, shuttleless steel wire healds, stainless steel healds, slip rings (Hua Si rings) and other products, please contact Mr. Yang of our company for consultation. We sincerely welcome business users from all over the city to visit and guide us.
