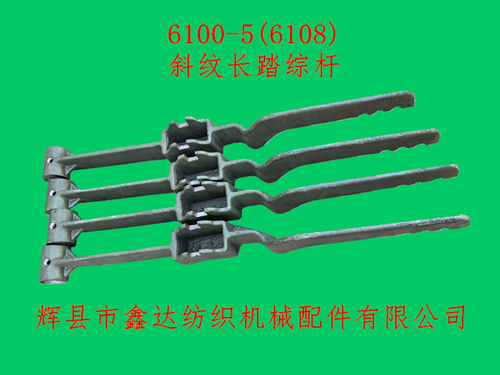

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 6100-5 (6108) Twill Treadle Lever (Long),Twill Treadle,Treadle Lever, Twill Loom Parts,Long Treadle Lever,twill loom accessories 6100-5 (6108) diagonal frame tread rod (long), GA615-6100-5 treadle lever bent to the right, composed of one 6108 tread rod (cast iron) and two 3122 (nylon shaft sleeve or oil bearing), with a total length of 60 centimeters. The rotor box of the pedal lever is the same as other specifications of pedal levers.

The above picture shows the measured length of the weaving machine's tread rod 6100-5. The 6108 tread rod is connected to the 6107 tread rod bolt, with 2 sets of 63 "and 75" weaving machines and 1 set of 56 "weaving machines, with a lateral movement of 0.4 millimeters.

The distance from the tail of the long tread rod of the diagonal accessory 6100-5 (6108) to the rotor box is the same as other diagonal tread rods, while the bending and length of the front part are different, as shown in the following figure:

The part numbers of the pedal lever (treadle lever) from left to right in the above picture are 6100-5 (bent to the right), 6100-7 (straight), 6100-6 (bent to the right), and 6100-8 (bent to the left); If you need to purchase GA615 tread rod, diagonal long tread rod, diagonal frame, 1515 diagonal accessories and other products, please contact our company for negotiation. Welcome to cooperate!
