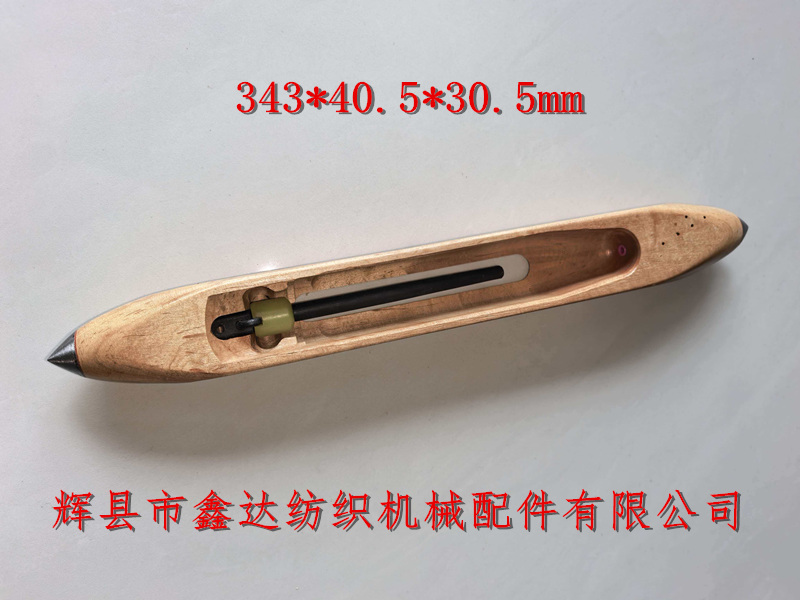

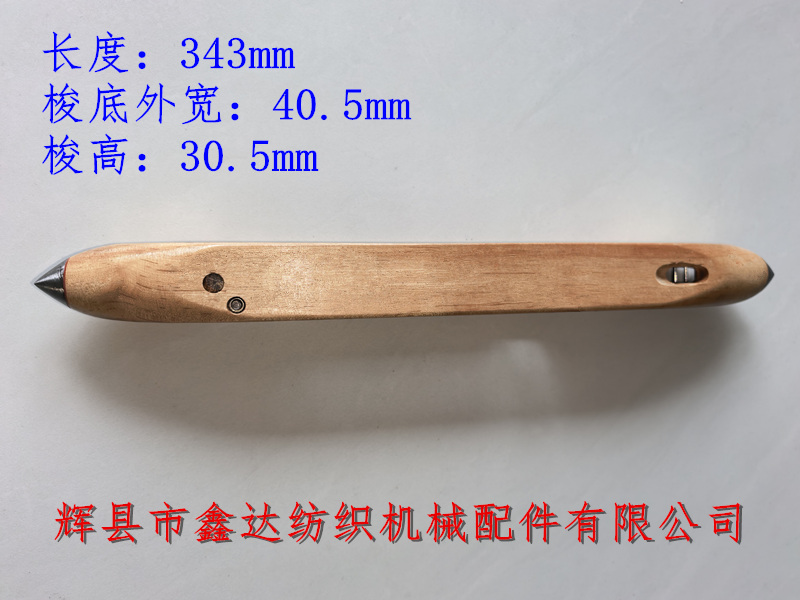

Huixian Xinda Textile Machinery Parts Co., Ltd. provides small-sized fiberglass compressed wood shuttles with dimensions of 343*40.5*30.5mm,Wood Shuttle,Fiberglass Shuttle,Textile Wooden Parts,Compressed Shuttle, including wood shuttles, fiberglass shuttles, compressed wood shuttles, textile machinery wood accessories, and textile wood parts; The total length of the shuttle is 343mm, the length of the compressed wood shuttle body is 315 mm, the outer width of the bottom of the shuttle body is 40.5 mm, the total height is 30.5 mm, the effective length inside the shuttle cavity is 182 mm, and the inner width is 29 mm. The front of the shuttle cavity is equipped with pink small-sized alumina ceramic eyes.

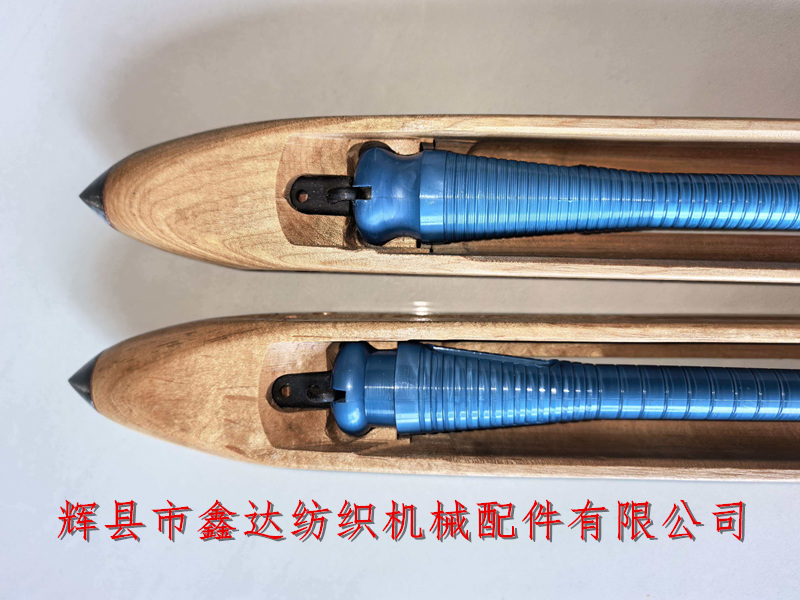

The shuttle is used in conjunction with a straight neck warp tube (usually, the warp tube used for fiberglass fabrics is a square arc tube, also known as a straight neck), and the inner width of the warp groove is 21mm.

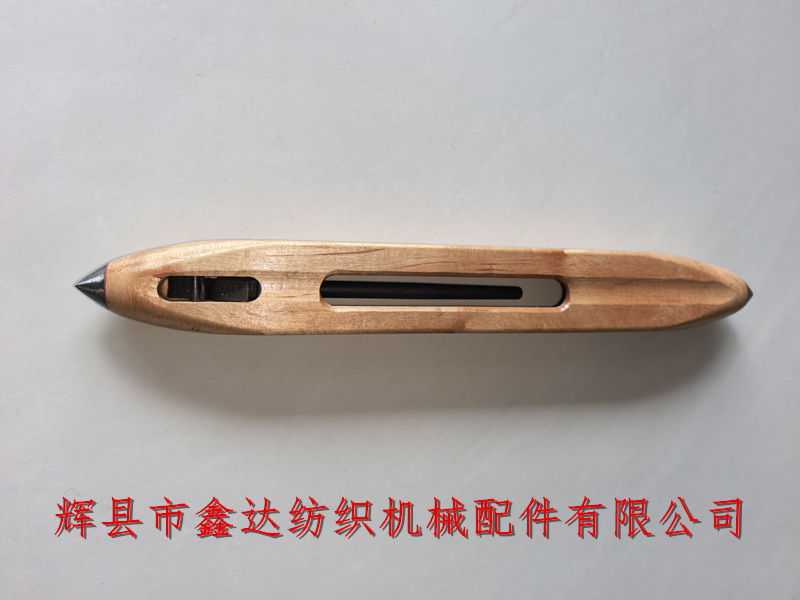

The front of the small-sized fiberglass shuttle consists of 5 steel needles, without the installation of telescopic bells and fixed locking screws. The height of the groove for fixing the bell is 8mm, and the length of the slot at the bottom of the shuttle is 119mm (see the figure below).

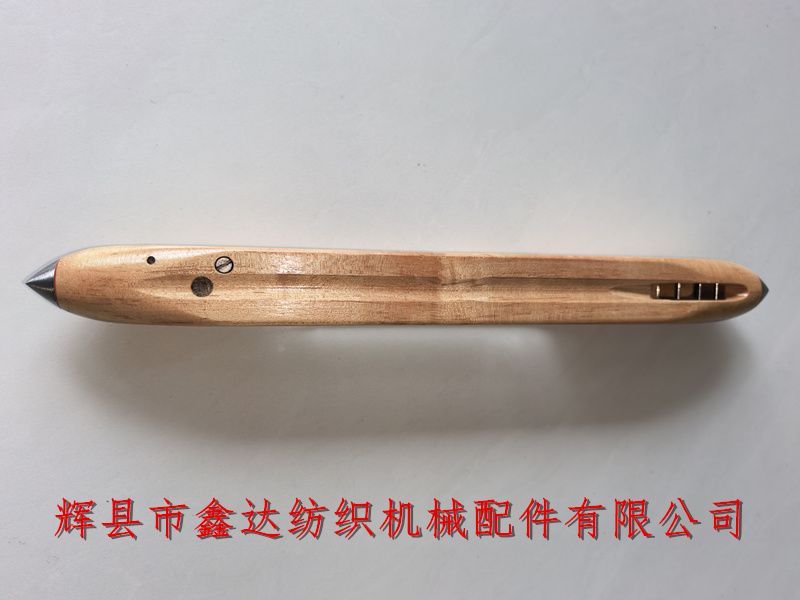

There are a series of interlocking screws below the wooden frame (shuttle shaft, shuttle column) at the back of the shuttle to clamp the shuttle body, reducing the occurrence of cracking in the shuttle under impact conditions.Wood Shuttle,Fiberglass Shuttle,Textile Wooden Parts,Compressed Shuttle.

The shuttle spring used at the bottom of the shuttle is a regular type, with a slot width of 10.7 millimeters and an inner length of 41 millimeters; This shuttle is a small shuttle head type, and the center of gravity position of the shuttle is the same as the commonly used 45mmX35mm type.

If you need to purchase small-sized fiberglass compressed wooden shuttles 343*40.5*30.5mm shuttles, 13.5-inch wooden shuttles, fiberglass shuttles (shuttles for fiberglass fabrics), compressed wooden shuttles, textile machine wood accessories, textile wood parts and other products, please contact Mr. Yang from our company for consultation.
