Huixian Xinda Textile Machinery Parts Co., Ltd. provides SJ-47 Stop Hoop For Loom SJ-P-III Let-off,Positioning Ring,Let-off,Loom Parts,GA615 Parts, SJ-47 positioning ring weaving machine SJ-P-III external warp delivery accessories. GA615 weaving machine accessory positioning ring SJ47 is installed on the upper part of the machine's external warp delivery vertical shaft. Each weaving machine uses one of these accessories, with an inner hole diameter of 24 millimeters, an outer ring diameter of 45 millimeters, and a total thickness of 15.5 millimeters. Weaving machine positioning ring, vertical warp feeding accessories, SJ accessories, GA615/1515 weaving machine accessories.

There are screw holes on the side of the positioning ring, which are fixed with internal hexagonal M10 bolts; Its material is processed using cold drawn material to block the upward movement of the vertical shaft in the support foot of SJ44 vertical shaft.

The 1515 loom can also use vertical warp feeding accessories, which have the characteristics of stable warp feeding speed, low failure rate, and long service life. Compared to the internal transmission device, the structure has the advantage of accurate transmission displacement.

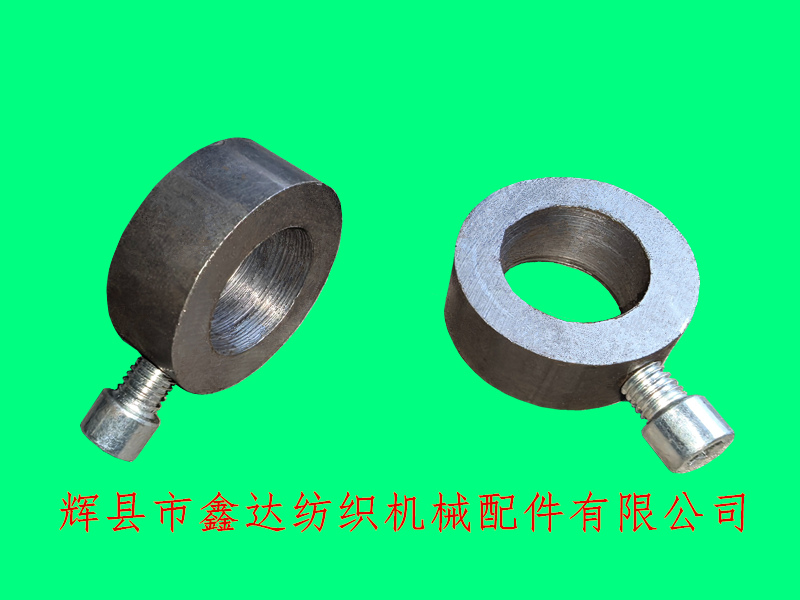

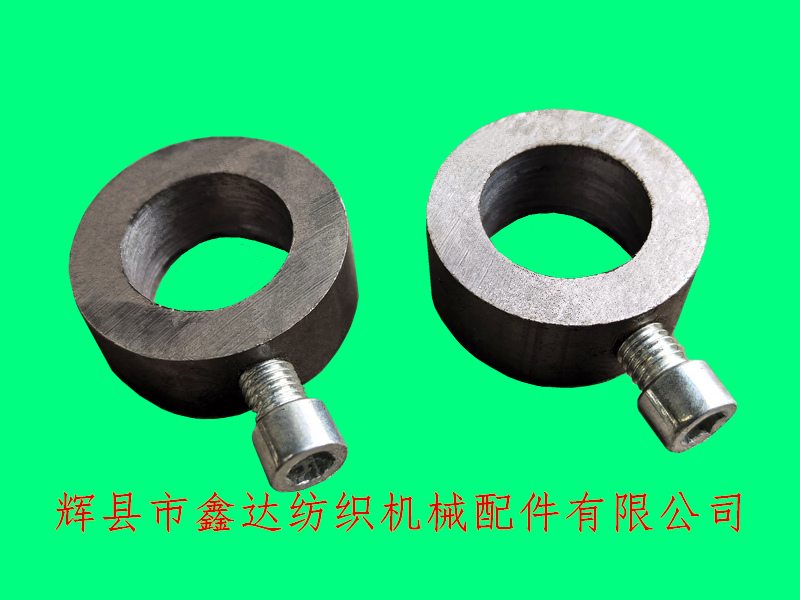

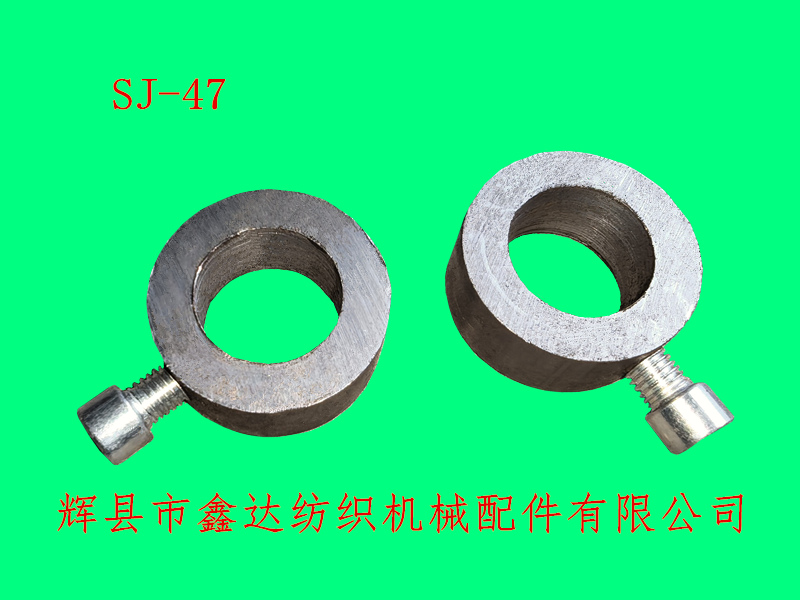

The weight of a single retaining ring (as shown in the above picture) is 102 grams. If you need to purchase SJ47 positioning rings, SJ-47 weaving machine retaining rings, and other accessories for SJ-P machine delivery, you can contact Mr. Yang from our company for consultation.
