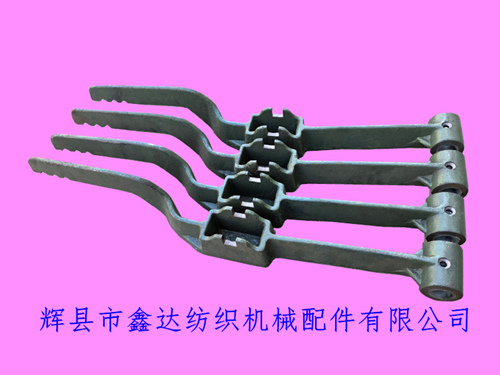

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 6100-6 (6109) Second Twill Treadle Lever, piece of integrated frame tread rod 2/2 diagonal accessories,treadle lever for 4 Leaves Satin, 3122 oil bearing bushings combined with 6109 tread rod to form 6100-6 second piece of integrated rod, with the same connection, number of pieces used, and lateral requirements as 6100-5. The total length of the 6109 tread bar(treadle lever) is 57 centimeters, made of HT15-32 gray pig iron. Each 1515-63 inch and 75 inch twill loom uses 2 pieces, and each GA615-56 inch loom uses 1 piece.

The front of the 6109 pedal lever is bent to the right, and there is a reinforced dragon rib in front of the pedal rotor box. The above picture is a side view and a top view of the pedal lever, which is not divided into left and right hands.

The tread bar of the 6100 series is a key component of the GA615 twill device, used to assist in controlling the movement sequence of the weaving machine frame. It is an important accessory for forming the shuttle during twill weaving and is generally used on weaving machines with a width of 63 inches or more.

The tail of the 6109 walking rod has reinforced dragon ribs on both sides and oil injection holes on the top. Two 3122 nylon bushings are installed on both sides of it. The rotor 1200-4 and rotor core shaft S10 used in the walking rod are the same as the 1511 type diagonal fittings.

If textile manufacturers, cotton fabric manufacturing factories, and shuttle cotton machine processing factories in various cities need to purchase 1515 weaving machine treadle levers,twill loom spare parts,1515K leaces satin GA615-6109 twill accessories, shuttle 2/2 twill devices, and twill shuttle machine accessories, please contact our company's Manager Yang for negotiation.
