Huixian Xinda Textile Machinery Parts Co., Ltd. provides N57 Auto Loom Safety Apparatus Bracket, automatic shuttle changing support foot GA615-6801 shuttle changing device accessories. Safety Apparatus,Loom Bracket,N57,1511 Loom Parts,The N57 movable foot is used for 1511 or 1515 weaving equipment and is connected to N7 or 3711; 6801 is a GA615 loom equipment accessory, connected to the 3711 lifting arm. Its processing surface length is 28mm, and the center to center distance between the front and back vertical axes is 16mm.

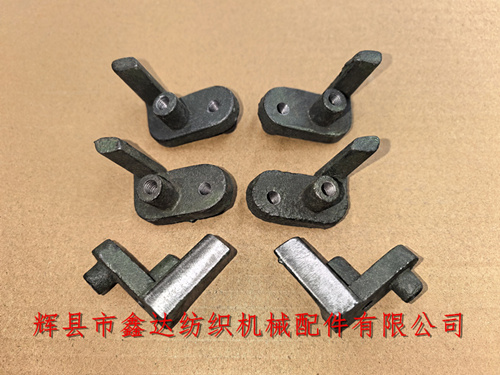

N57 is divided into left and right mobile phones (as shown in the above picture), made of gray iron HT15-33. When the crankshaft is at the rear dead center (rear dead center) to change the shuttle and roll the shuttle, the distance between the crankshaft and the shuttle changing hook rod N58 is 3-5 millimeters.

Each weaving machine uses one N57/6801(Safety Apparatus), which is installed on the shuttle side of the weaving machine. The J17-N7-N57 assembly is paired with N58; If N58 is not disconnected from N57 and the shuttle box is still empty, it indicates that during the shuttle replacement process, the shuttle box was not filled with full shuttles.

The shuttle changing motion of a weaving machine is an impact motion, therefore, its components are easily damaged and prone to movement. To ensure the normal function of the device, it is necessary to level it every once in a while. This leveling cycle is determined based on specific conditions such as the weaving machine speed, weft yarn capacity, and material quality.

The packaging of N57/6801 Safety Apparatus is: 25 pieces/string (same hand), with a minimum order quantity of 10 pieces. If you need to purchase 1515 automatic accessories, 1511 loom parts,Auto shuttle changing device, loom support feet, GA615 accessories, movable feet and other products, please contact Mr. Yang from our company for consultation.
