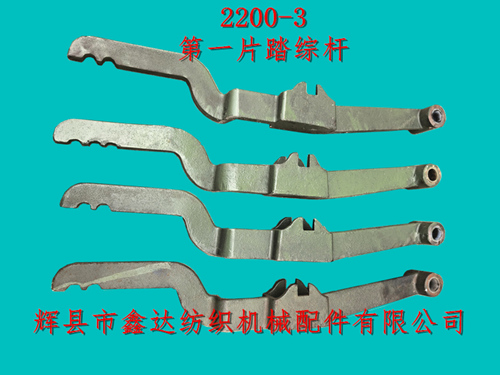

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 2200-3 Twill Treadle (Long) Loom Accessory,S5 twill tread rod (long treadle) weaving machine accessories. The 1511 twill loom accessory -2200-3 has a total length of 57 centimeters and belongs to the 1511 old weaving machine accessory. It is equipped with a 1515-3122 nylon liner installed at the rear, with an inner hole diameter of 20mm. The S9 treadle Bowl and S10 Arbor for treadle bowl are installed in the middle slot, and the rotor contacts the peach disc (tread disc) of the weaving machine. If you need to know the parameters, detailed dimensions, materials, and prices of the twill accessory S5 tread bar, you can contact our company for consultation.
The above picture is a top view of the 2200-3 twill tread rod(Long Treadle). The front handle is bent to the right, and the S49 of the lower hanging hook is hooked into the front slot of the tread rod. Each twill loom uses one long tread rod. 2200-3 is composed of one S5 pedal rod and two 3122 bushings. The distance from the left outer side of the rectangular box to the front of the pedal rod is 26.5 centimeters.
The above picture is a top and side view of the 2200-3 pedal lever. Its shape is that both ends are raised upwards, and the inside of the rectangular box in the middle is used for adding oil lubrication. The inner width of the slot gap is 18 millimeters. The diagonal accessories of the old fabric machine, combined with the multi page warp frame, can be used to weave fabrics with complex structures. The orderly and cyclic arrangement of the warp and weft order is the basis for realizing diagonal structure fabrics.
The weight of a single 2200-3 (diagonal tread rod) is approximately 2.25 kilograms, which meets the usage requirements of diagonal devices with other diagonal tread rods of different lengths. Minimum order quantity: 1 unit, delivery time 5-7 days, delivery method is logistics or express delivery, payment before delivery, default is Debon Express.
If you need to purchase 1511 twill accessories, 44 inch twill treadle, 1511 twill weaving machine equipment, old-fashioned weaving machine accessories, old shuttle loom accessories and other products, please contact Mr. Yang from our company for consultation.
