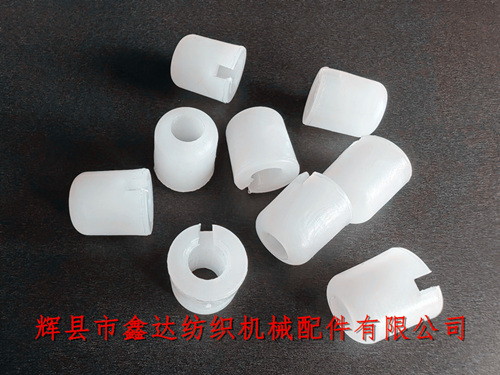

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Shuttle Spindle (Shuttle Core) Nylon Sleeve, nylon sleeve (shuttle core sleeve) weaving machine shuttle accessories for corner net shuttle cores. It is a plastic part of textile equipment, also known as nylon accessories. The rear of the white shuttle core sleeve has a slot (notch) with a width of 3mm and a length of 4.5mm. The total length of the nylon sleeve used for the shuttle core is 17.5mm, with a diameter of 14.5mm for the front arc edge and 15.5mm for the outer diameter of the rear notch position. The inner diameter of the circular hole used for the shuttle core rod in the middle is 7.5mm, which is in the shape of a straight cylinder with the same inner diameter.

This specification of shuttle core sleeve is the shuttle Spindle component used for cotton machine shuttles. Cotton machine shuttles include shuttles used for fabrics such as white plain cloth, towels, fiberglass cloth, etc. Although their varieties and shuttle designs are different, the shuttle core is the same and all come with this nylon shuttle core sleeve.

The function of the shuttle core sleeve is to fix the large head inner cavity of the weft tube (winding tube) in place after it is inserted into the shuttle core, so that the weft tube can be horizontally placed in the shuttle cavity, and the weft tube cannot rotate along the shuttle core in the shuttle cavity to prevent the occurrence of broken weft yarn.

The shuttle Spindle sleeve belongs to textile nylon parts and weaving machine plastic parts. The weight of a single shuttle core sleeve is 2 grams, the minimum order quantity is 1000 pieces, and the delivery time is about 5-8 days. Its packaging is transparent bags, with 1000 pieces per bag; The material of the shuttle core sleeve is reinforced MC nylon.

If you need to purchase shuttle Spindle sleeves, nylon sleeves, shuttle accessories, textile equipment, shuttle core accessories and other textile equipment products, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit and guidance.
