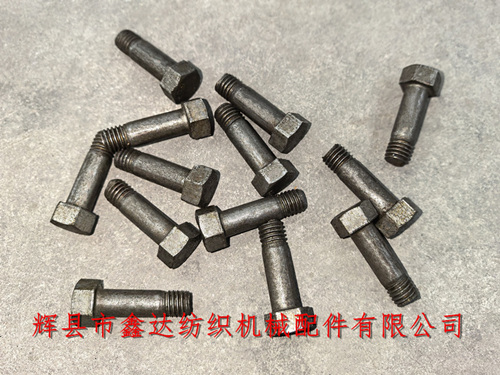

Huixian Xinda Textile Machinery Parts Co., Ltd. provides the L47W-1 loom Temple Box (seat) with a shear hammer pin extension cover screw. The material of the L47W-1 bolt is steel 20, and the front part of the screw is M8, which is connected to the L46XL47 extension box (1511 shuttle changing side) or 3909X3910 edge support box seat (1515 shuttle magazine side) for use. The total length of the light rod and thread is 26mm, and it is used once per loom.

The tail of the L47W-1 screw is in the shape of a hexagonal head. There are various specifications for the Temple Box seat (edge support box) of the weaving machine, and this screw is generally used for edge supports with shearing hammers to lock the base and upper cover of the extension box.

There are many special bolts used in textile machinery equipment - weaving machines, such as half round head square neck screws (also known as carriage screws), inverted tooth bolts, tension spring horn bolts, countersunk screws, flat end fastening screws, half round head wood screws, etc.

If you need to purchase accessories such as shuttle loom bolts, textile screws, loom Temple Boxes, 1515 shear hammer pins, GA615 extension covers, 1511 loom screws, Temple Cap,Cutter Hammer,or for more parameter information on the shear hammer pin extension cover screws for L47W-1 loom edge support boxes (seats), please contact Mr. Yang from our company for consultation.
