Huixian Xinda Textile Machinery Parts Co., Ltd. provides 180mm Pirn Photoelectric Coreless Weft Tube, 180 wooden pirns for silk weaving machines.Weft Tube,Silk Loom Pirn,Wooden Pirn,Coreless Weft Tube,Photoelectric Pirn,Textile Equipment, The length of the flat head wooden weft tube for silk weaving machines is 18 centimeters, the outer diameter of the flat head is 15mm, the thickness is 13.5mm, and the length is 17.7mm. The neck diameter of the weft tube is 10.2mm, and the length of the straight neck is 20mm. Optoelectronic flat head weft tubes, coreless weft tubes, fine neck weft yarn tubes, and wooden weft tubes belong to the category of woven textile equipment.

The dimensions of the probing hole on the side of the warp tube are: inner length is 8.2mm, inner width is 4mm; the diameter of the circular hole at the bottom of the 180 weft tube is 6.4mm, and the depth is 88mm. The weight of a single flat head photoelectric coreless tube is about 11.6 grams (the weight of the same specification and wood may vary, generally between 9-12 grams).

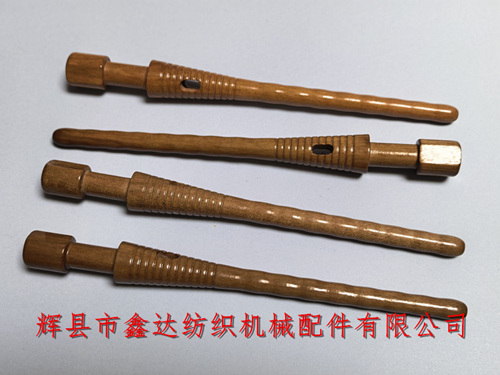

The visual effects of different backgrounds are also affected by differences in lighting, and the actual object shall prevail (the picture is taken of the actual object); The diameter of the bottom of the pagoda is 17mm, the diameter of the upper part (without circular pattern) of the pagoda is 10mm, and the diameter of the small head at the tail of the weft tube is 8.7mm. This specification of fine necked wooden weft tube is mainly matched with the 24 # or 25 # shuttle of the silk weaving machine.

There is one weft hole on each side of the weft tube, which is used to check whether the weft yarn has been used up during the weaving process (at the shuttle box position). It is usually detected by red photoelectric sensors. The matching shuttle does not have a core, so this type of weft tube is called a photoelectric coreless weft tube.

If you need to purchase silk weaving machine warp tubes, flat head coreless weft tubes, 180 wood weft tubes, textile machine flat head weft tubes, warp tubes, wood weft tubes, textile equipment and other products, please contact our company for consultation.
